Question 3 a) Assume all MOSFETs shown in Figure Q3a are in saturation, the body effect, y = 0 and channel-length modula

[answerhappygod]

Question 3 A Assume All Mosfets Shown In Figure Q3a Are In Saturation The Body Effect Y 0 And Channel Length Modula 1 (40.33 KiB) Viewed 48 times

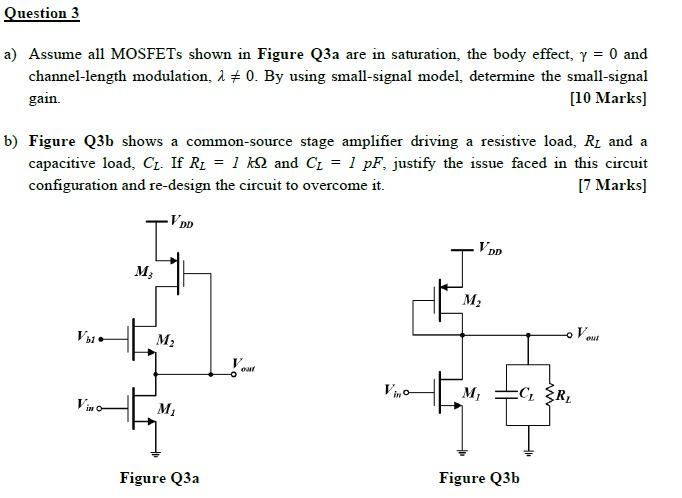

Question 3 a) Assume all MOSFETs shown in Figure Q3a are in saturation, the body effect, y = 0 and channel-length modulation, 160. By using small-signal model, determine the small-signal gain. [10 Marks] a b) Figure Q3b shows a common-source stage amplifier driving a resistive load, Ry and a capacitive load, C1. If Rz = 1 kl and C = 1 pF, justify the issue faced in this circuit configuration and re-design the circuit to overcome it. [7 Marks) V DD Vpp M J M V1 اني ام M ow M C, ER, Vino M Figure Q3a Figure Q3b
