Question 4: (140 Points, 4.0+ 3.0+ 3.0+ 4.0) The PAC committee consists of nine members and to run a meeting 50% or more

[answerhappygod]

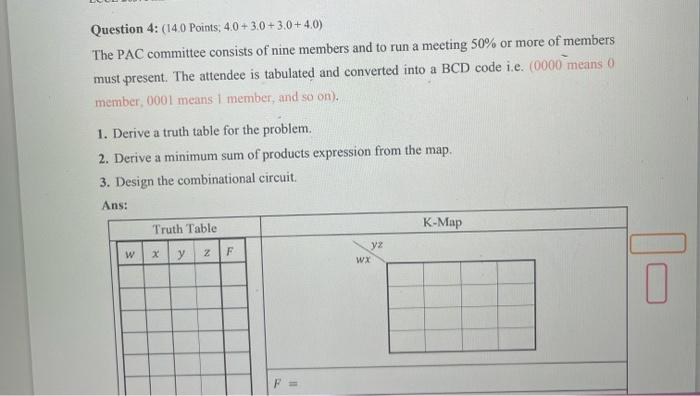

Question 4 140 Points 4 0 3 0 3 0 4 0 The Pac Committee Consists Of Nine Members And To Run A Meeting 50 Or More 1 (31.2 KiB) Viewed 36 times

Question 4: (140 Points, 4.0+ 3.0+ 3.0+ 4.0) The PAC committee consists of nine members and to run a meeting 50% or more of members must present. The attendee is tabulated and converted into a BCD code i.e. (0000 means member, 0001 means 1 member, and so on). 1. Derive a truth table for the problem 2. Derive a minimum sum of products expression from the map, 3. Design the combinational circuit Ans: Truth Table K-Map w x у 2 F y2 WX
