PROBLEM 4 A control system is depicted in Figure 3. Suppose that the overshoot of closed loop system to a unit step inpu

[answerhappygod]

Problem 4 A Control System Is Depicted In Figure 3 Suppose That The Overshoot Of Closed Loop System To A Unit Step Inpu 1 (104.29 KiB) Viewed 43 times

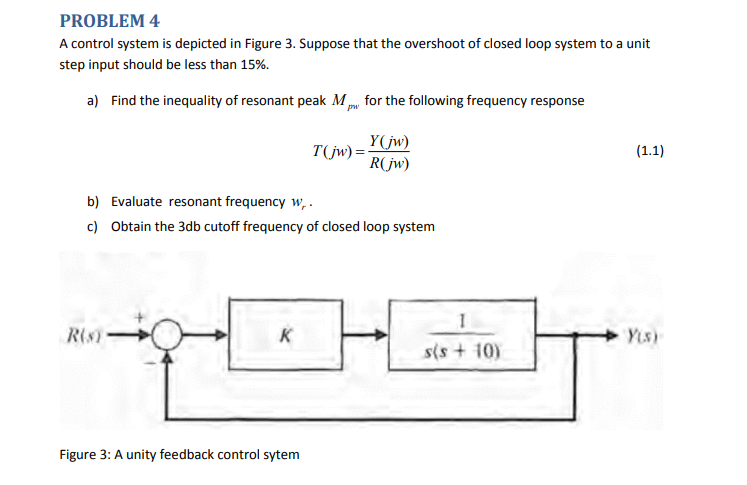

PROBLEM 4 A control system is depicted in Figure 3. Suppose that the overshoot of closed loop system to a unit step input should be less than 15%. a) Find the inequality of resonant peak My for the following frequency response T(jw) Y(jw) R(jw) (1.1) b) Evaluate resonant frequency w.. c) Obtain the 3db cutoff frequency of closed loop system 1 RO K Yus) sis + 10) Figure 3: A unity feedback control sytem
