a. (7 Points) Calculate Voc and loc flowing through R=10k 2 resistor connected to single phase half wave rectifier. Also

Post by answerhappygod »

A 7 Points Calculate Voc And Loc Flowing Through R 10k 2 Resistor Connected To Single Phase Half Wave Rectifier Also 1
A 7 Points Calculate Voc And Loc Flowing Through R 10k 2 Resistor Connected To Single Phase Half Wave Rectifier Also 1 (32.98 KiB) Viewed 35 times

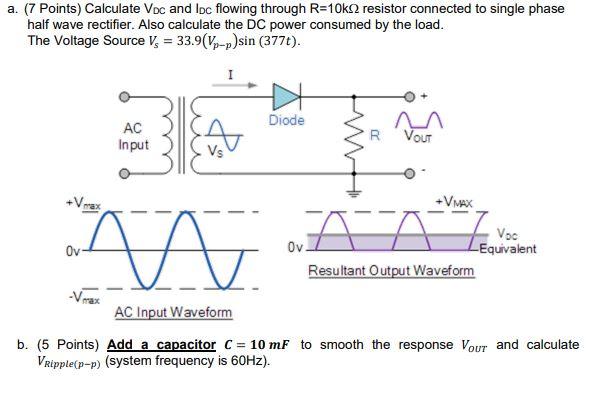

a. (7 Points) Calculate Voc and loc flowing through R=10k 2 resistor connected to single phase half wave rectifier. Also calculate the DC power consumed by the load. The Voltage Source Vs = 33.9(Vp-p)sin (377t). I Diode AC Input R Vout +VMAX AT Ov ДА V Voc Ov -Equivalent Resultant Output Waveform -V AC Input Waveform b. (5 Points) Add a capacitor C = 10 mF to smooth the response Vour and calculate VRipple(p-p) (system frequency is 60Hz).
