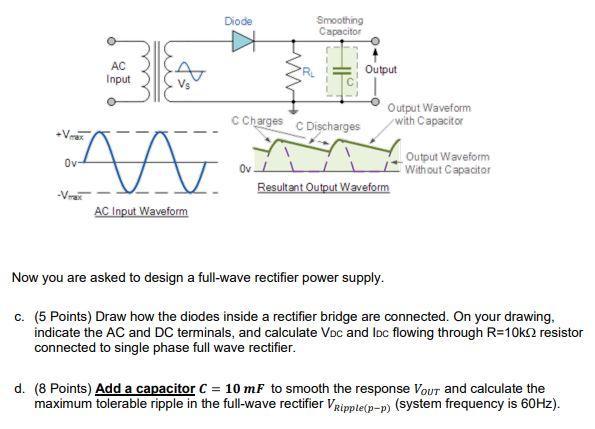

Diode Smoothing Capacitor AC Input Output C Charges Discharges Output Waveform with Capacitor -Vax Ov- АЛТ Ov4 Output Waveform Without Capacitor Resultant Output Waveform AC Input Waveform Now you are asked to design a full-wave rectifier power supply. C. (5 Points) Draw how the diodes inside a rectifier bridge are connected. On your drawing, indicate the AC and DC terminals, and calculate Voc and loc flowing through R=10k22 resistor connected to single phase full wave rectifier. d. (8 Points) Add a capacitor C = 10 mF to smooth the response Vout and calculate the maximum tolerable ripple in the full-wave rectifier Vripple(p-p) (system frequency is 60Hz).
