It doesn't matter which one you want to use for simulation. What
I want to know more about is your explanation of this experiment
and your answer（explanation） to (b). Thank you very much.

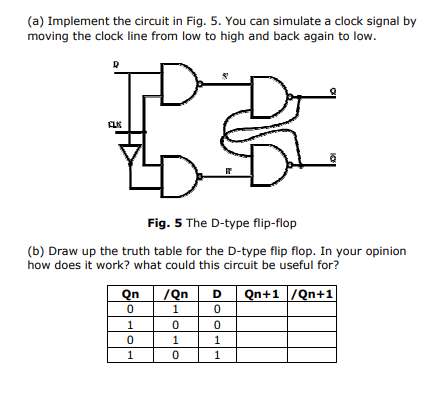

(a) Implement the circuit in Fig. 5. You can simulate a clock signal by moving the clock line from low to high and back again to low. D CLK Fig. 5 The D-type flip-flop (b) Draw up the truth table for the D-type flip flop. In your opinion how does it work? what could this circuit be useful for? Qn /Qn D Qn+1 /Qn+1 0 1 0 0 1 1 0 1 0 0 0 0 1 1
