Use any method at your disposal (Superposition, Thevenin, Nodal Analysis) to solve for the voltage across the terminals

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Use any method at your disposal (Superposition, Thevenin, Nodal Analysis) to solve for the voltage across the terminals

Post by answerhappygod »

Use Any Method At Your Disposal Superposition Thevenin Nodal Analysis To Solve For The Voltage Across The Terminals 1
Use Any Method At Your Disposal Superposition Thevenin Nodal Analysis To Solve For The Voltage Across The Terminals 1 (12.03 KiB) Viewed 30 times

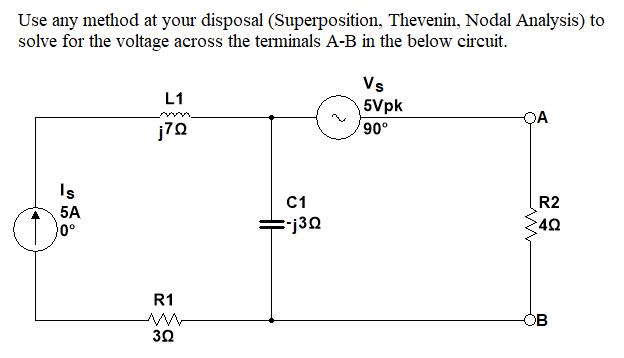

Use any method at your disposal (Superposition, Thevenin, Nodal Analysis) to solve for the voltage across the terminals A-B in the below circuit. L1 Vs 5V pk 90° A j7Ω C1 Is 5A 0° R2 -40 ! j3Ω R1 OB 3Ω
