Section 5. The S-R Latch (a) Connect the two NOR gates as shown in Fig. 4. R Fig. 4. An S-R latch created using NOR gate

Post by answerhappygod »

Section 5 The S R Latch A Connect The Two Nor Gates As Shown In Fig 4 R Fig 4 An S R Latch Created Using Nor Gate 1
Section 5 The S R Latch A Connect The Two Nor Gates As Shown In Fig 4 R Fig 4 An S R Latch Created Using Nor Gate 1 (36.69 KiB) Viewed 63 times

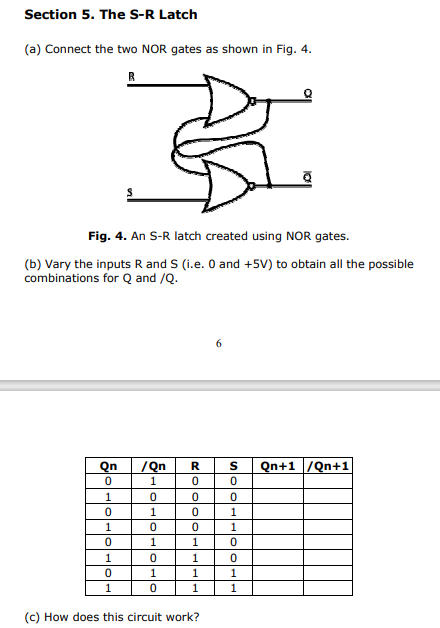

Section 5. The S-R Latch (a) Connect the two NOR gates as shown in Fig. 4. R Fig. 4. An S-R latch created using NOR gates. (b) Vary the inputs R and S (i.e. O and +5V) to obtain all the possible combinations for Q and /Q. 6 Olun Qn+1 /Qn+1 | 1 Qn 0 1 0 1 0 1 0 1 /Qn 1 0 1 0 1 0 1 0 OOOOH S 0 0 1 1 Hold 1 1 0 1 1 (c) How does this circuit work?
