Q7. Find V. assuming ideal op amp and offset diode model (Vp = 0.5 V) for the case: (i) when Vin = 6 V, (ii) when Vin=-6

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q7. Find V. assuming ideal op amp and offset diode model (Vp = 0.5 V) for the case: (i) when Vin = 6 V, (ii) when Vin=-6

Post by answerhappygod »

Q7 Find V Assuming Ideal Op Amp And Offset Diode Model Vp 0 5 V For The Case I When Vin 6 V Ii When Vin 6 1
Q7 Find V Assuming Ideal Op Amp And Offset Diode Model Vp 0 5 V For The Case I When Vin 6 V Ii When Vin 6 1 (18.5 KiB) Viewed 23 times

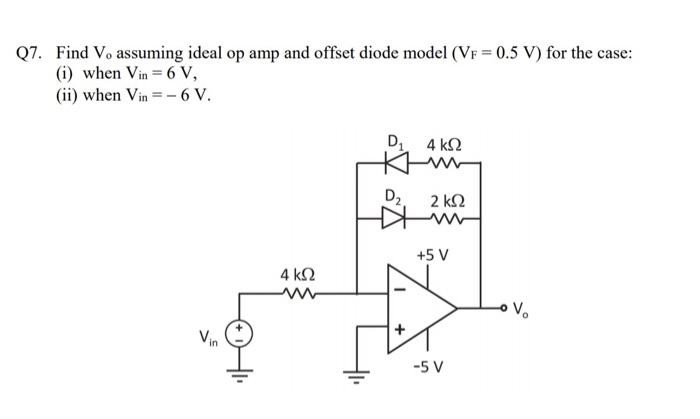

Q7. Find V. assuming ideal op amp and offset diode model (Vp = 0.5 V) for the case: (i) when Vin = 6 V, (ii) when Vin=-6 V. D, 4 ΚΩ W D2 2 ΚΩ w +5 V 4 ΚΩ w V. + -5 V
