Vcc +15 V Rc 2.2 k12 C2 RI w 22 k22 HE C 1 uF Vin 카 = 1 pF Bpc = 90 Bac = 100 = R2 4.7 ke2 RE 1.Ο ΚΩ Figure 6-52 4. Dete
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Vcc +15 V Rc 2.2 k12 C2 RI w 22 k22 HE C 1 uF Vin 카 = 1 pF Bpc = 90 Bac = 100 = R2 4.7 ke2 RE 1.Ο ΚΩ Figure 6-52 4. Dete

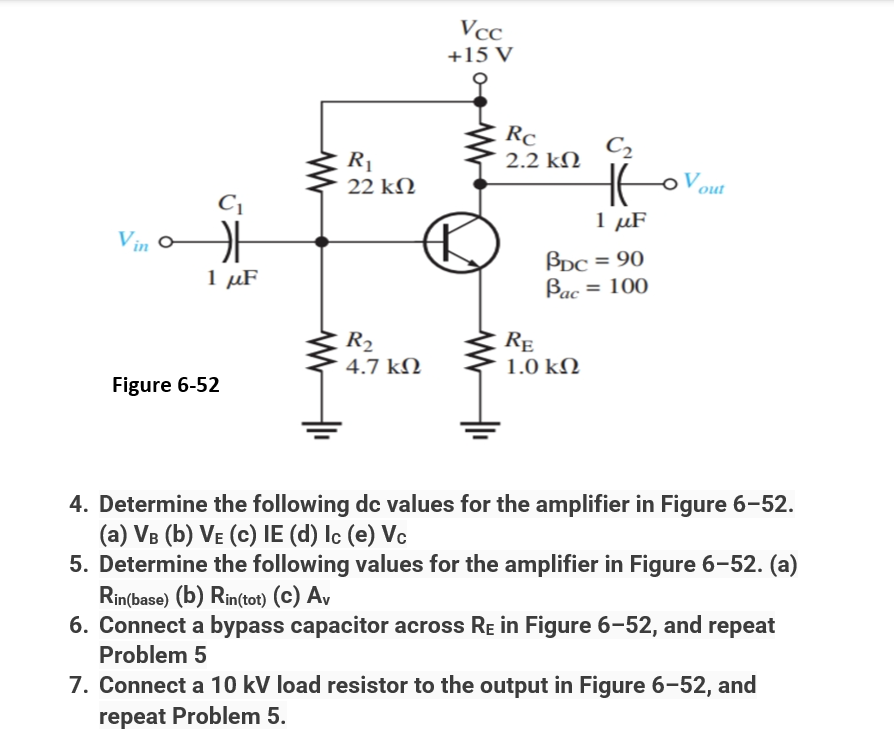

Vcc +15 V Rc 2.2 k12 C2 RI w 22 k22 HE C 1 uF Vin 카 = 1 pF Bpc = 90 Bac = 100 = R2 4.7 ke2 RE 1.Ο ΚΩ Figure 6-52 4. Determine the following dc values for the amplifier in Figure 6-52. (a) VB (b) VE (c) IE (d) Ic (e) Vc 5. Determine the following values for the amplifier in Figure 6-52. (a) Rin(base) (b) Rin(tot) (c) Av 6. Connect a bypass capacitor across Re in Figure 6-52, and repeat Problem 5 7. Connect a 10 kV load resistor to the output in Figure 6-52, and repeat Problem 5.
