1+ 22 V ΑΛΛ 1 5 ΚΩ 2 Η 56 μF ΑΛΛ 4.7 ΚΩ Calculations Time Constant (Discharging Phase) (T) Capacitor Voltage (Vc) Capa

[answerhappygod]

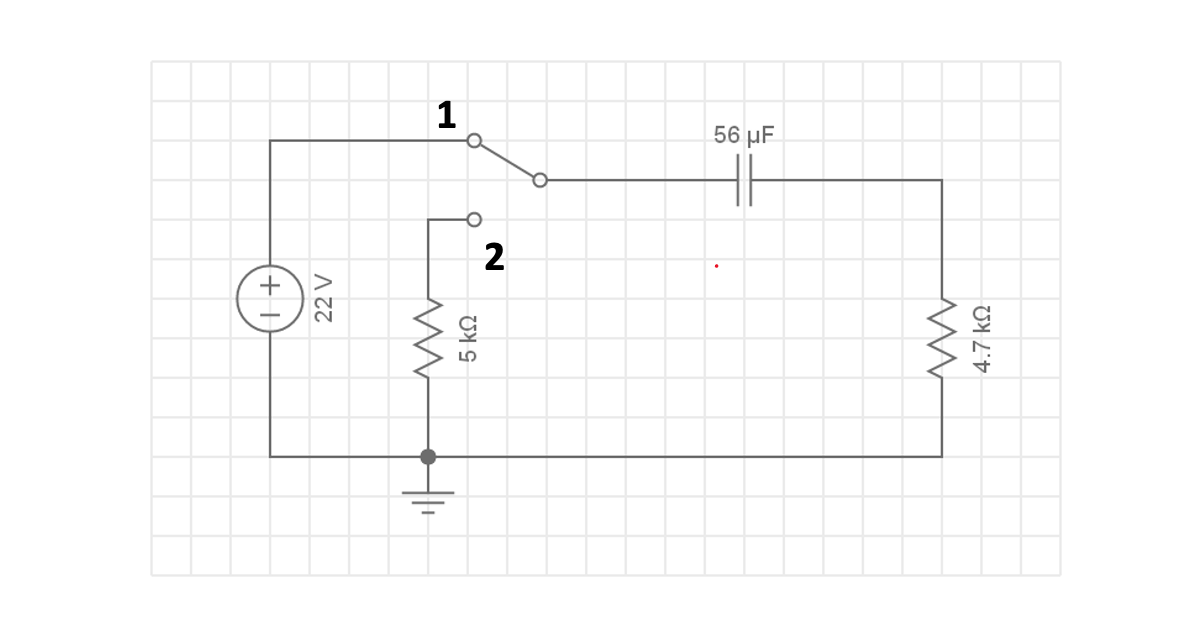

1 (47.42 KiB) Viewed 34 times

1)

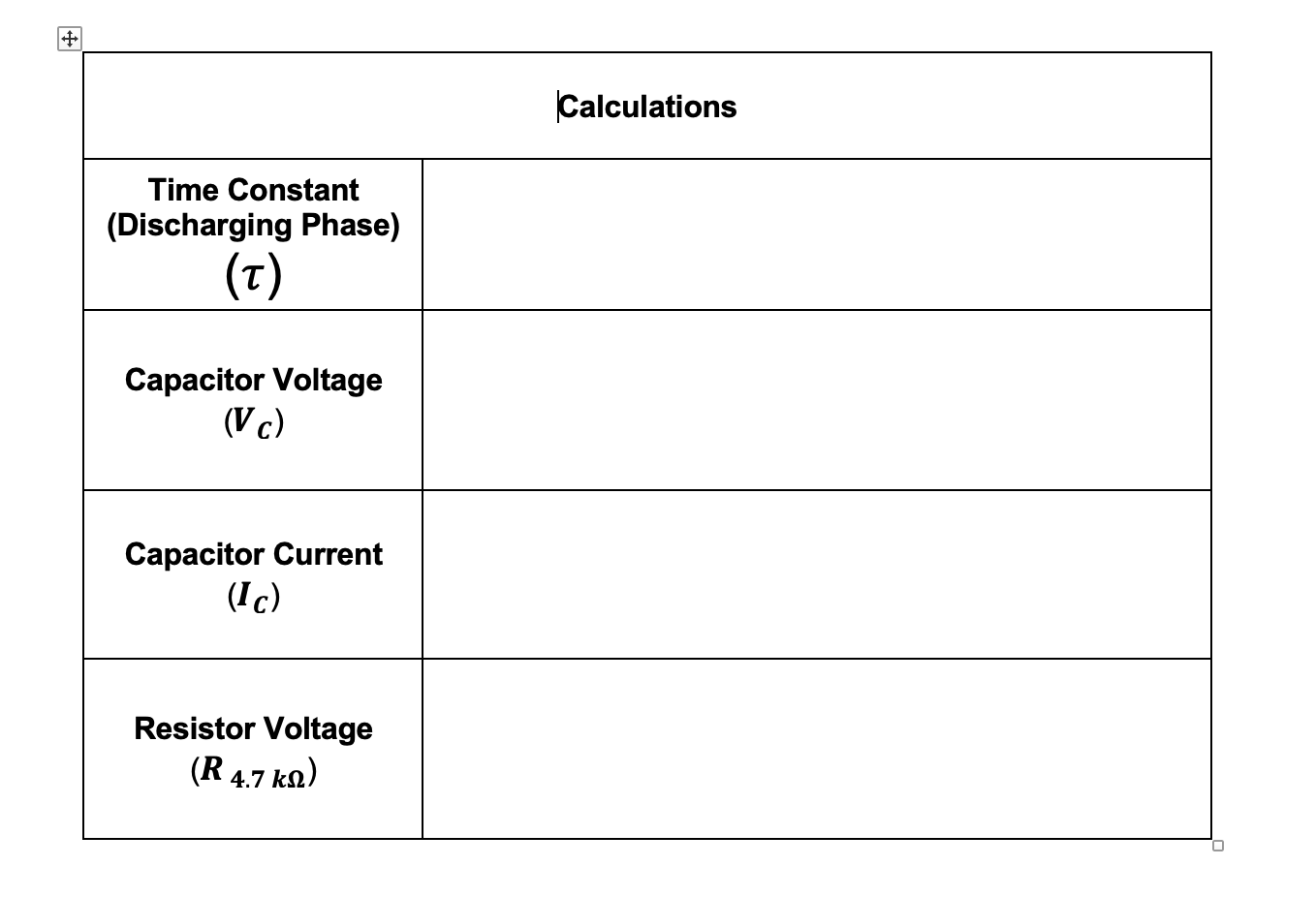

2 (48.86 KiB) Viewed 34 times

2)
For the RC circuit make the calculations for the voltage and
current over five (5) time constants () of discharging.

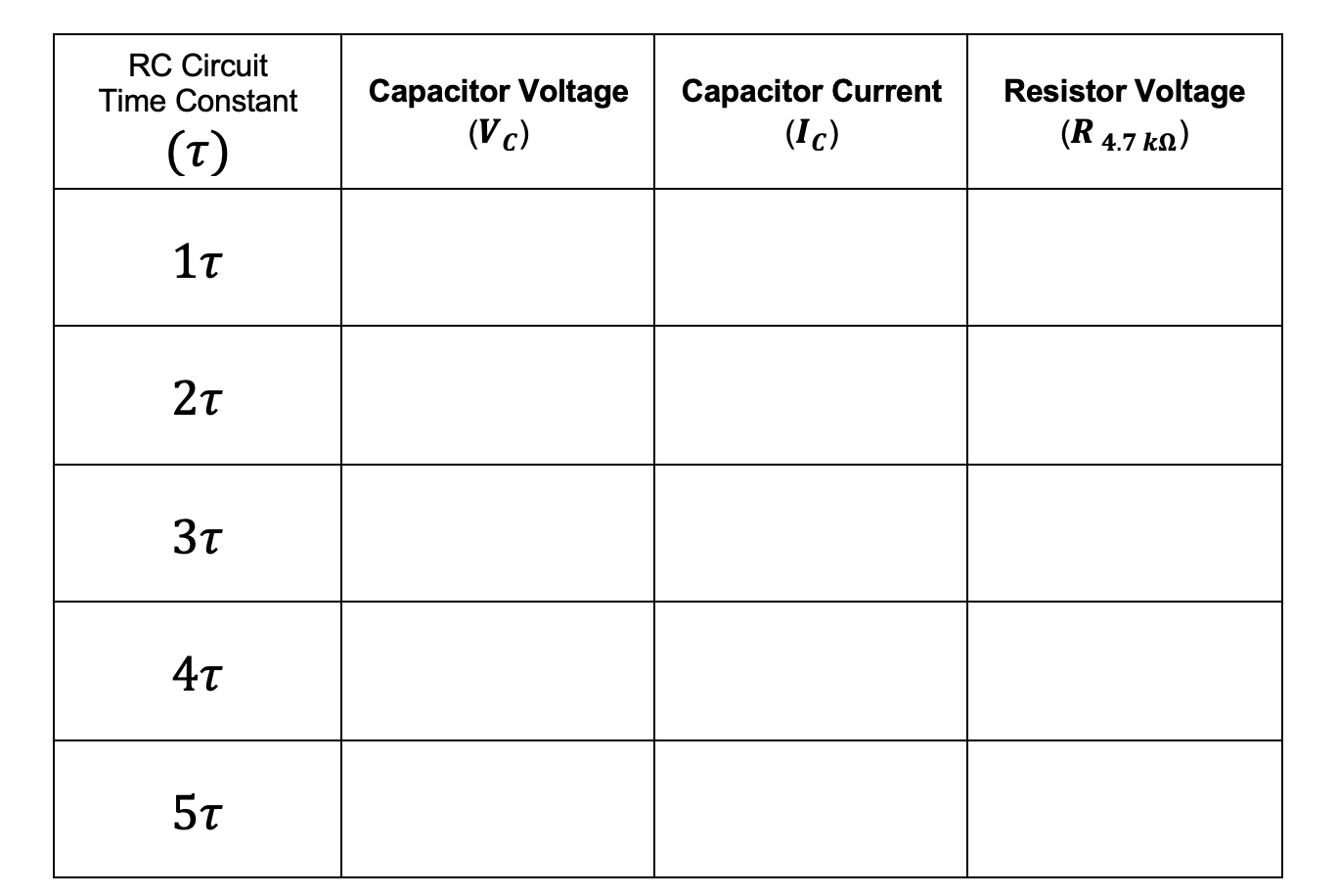

3 (44.82 KiB) Viewed 34 times

3)
Sketch plot, by hand or use a graphing tool the
Discharging phase of the RC circuit. Use the data
from the tables above.
Plot in time (t=0 to t->20r))
after the switch is thrown into
position 2– “Discharging Phase”:
1+ 22 V ΑΛΛ 1 5 ΚΩ 2 Η 56 μF ΑΛΛ 4.7 ΚΩ

Calculations Time Constant (Discharging Phase) (T) Capacitor Voltage (Vc) Capacitor Current (Ic) Resistor Voltage (R 4.7 kn)

RC Circuit Time Constant Capacitor Voltage (Vc) Capacitor Current (1) Resistor Voltage (R 4.7 kn) (T) 11 2τ 3т 4τ 51
