2 a. [15] For the series magnetic circuit given in the figure 2, find: i) the current I required to develop a flux of Q
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2 a. [15] For the series magnetic circuit given in the figure 2, find: i) the current I required to develop a flux of Q

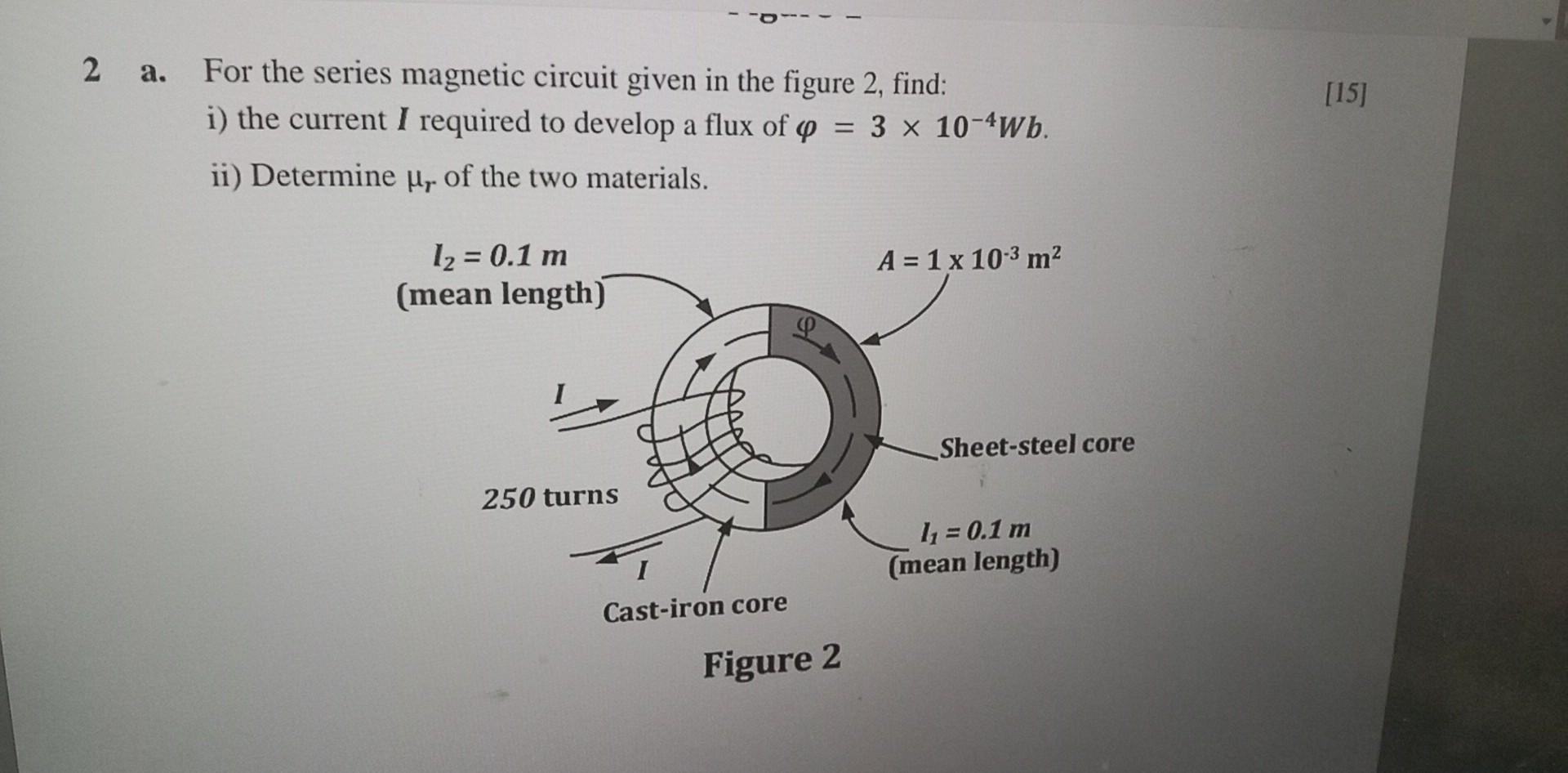

2 a. [15] For the series magnetic circuit given in the figure 2, find: i) the current I required to develop a flux of Q = 3 x 10-4Wb. ii) Determine up of the two materials. = = A = 1 x 10-3 m2 12 = 0.1 m (mean length) Sheet-steel core 250 turns 11 = 0.1 m (mean length) Cast-iron core Figure 2
