3. The circuits of Fig. (7-6) is modified by changing the base-circuit resistance from 200 to 50k, if ß= 100. (a) determ

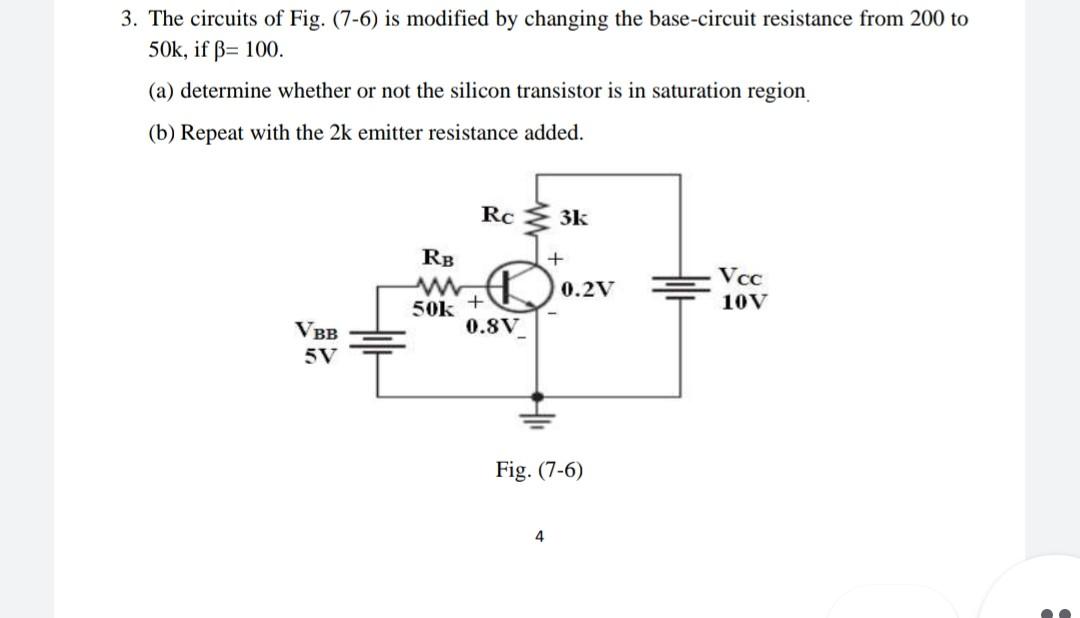

3. The circuits of Fig. (7-6) is modified by changing the base-circuit resistance from 200 to 50k, if ß= 100. (a) determine whether or not the silicon transistor is in saturation region (b) Repeat with the 2k emitter resistance added. Rc 3k RE + wo 0.2v Vcc 10V 50K + 0.8V VBB 5V Fig. (7-6) 4
