Exercises -otvo Sketch the output (V.) for the circuit of Fig. (4-11) for the input shown (V;). R + -M V. 10V 3K22 Vz=12

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Exercises -otvo Sketch the output (V.) for the circuit of Fig. (4-11) for the input shown (V;). R + -M V. 10V 3K22 Vz=12

Post by answerhappygod »

Exercises Otvo Sketch The Output V For The Circuit Of Fig 4 11 For The Input Shown V R M V 10v 3k22 Vz 12 1
Exercises Otvo Sketch The Output V For The Circuit Of Fig 4 11 For The Input Shown V R M V 10v 3k22 Vz 12 1 (26.44 KiB) Viewed 23 times

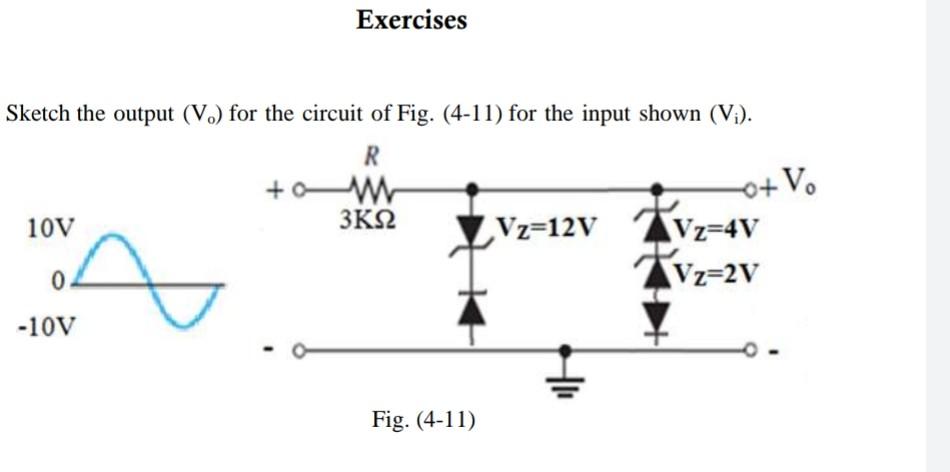

Exercises -otvo Sketch the output (V.) for the circuit of Fig. (4-11) for the input shown (V;). R + -M V. 10V 3K22 Vz=12V AVz=4V 0 Vz=2V -10V Fig. (4-11)
