Problem 1 Consider the unity-feedback system shown in Figure (1). For a step input the closed-loop system exhibits 15% o

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem 1 Consider the unity-feedback system shown in Figure (1). For a step input the closed-loop system exhibits 15% o

Post by answerhappygod »

Problem 1 Consider The Unity Feedback System Shown In Figure 1 For A Step Input The Closed Loop System Exhibits 15 O 1
Problem 1 Consider The Unity Feedback System Shown In Figure 1 For A Step Input The Closed Loop System Exhibits 15 O 1 (42.64 KiB) Viewed 41 times

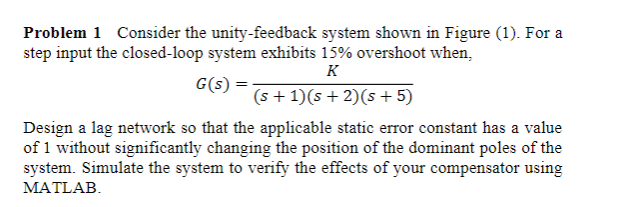

Problem 1 Consider the unity-feedback system shown in Figure (1). For a step input the closed-loop system exhibits 15% overshoot when, K G(S) = (s + 1)(s + 2)(s +5) Design a lag network so that the applicable static error constant has a value of 1 without significantly changing the position of the dominant poles of the system. Simulate the system to verify the effects of your compensator using MATLAB.
