Problem 3: 1. Draw the circuit in phasor domain 2. Write equivalent impedance as seen by the current source, 3. Determin

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem 3: 1. Draw the circuit in phasor domain 2. Write equivalent impedance as seen by the current source, 3. Determin

Post by answerhappygod »

Problem 3 1 Draw The Circuit In Phasor Domain 2 Write Equivalent Impedance As Seen By The Current Source 3 Determin 1
Problem 3 1 Draw The Circuit In Phasor Domain 2 Write Equivalent Impedance As Seen By The Current Source 3 Determin 1 (32.04 KiB) Viewed 35 times

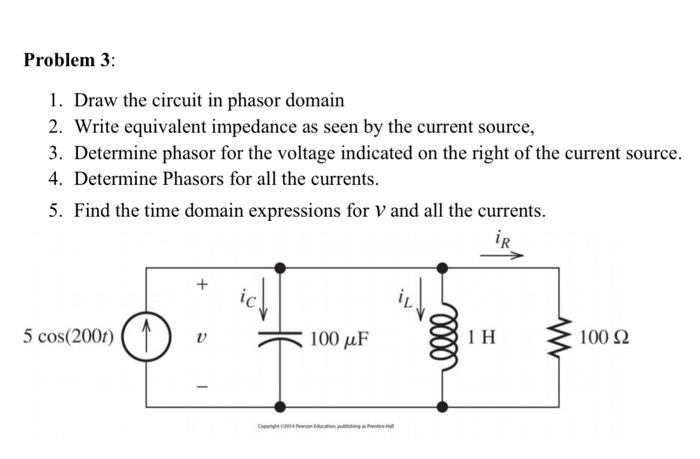

Problem 3: 1. Draw the circuit in phasor domain 2. Write equivalent impedance as seen by the current source, 3. Determine phasor for the voltage indicated on the right of the current source. 4. Determine Phasors for all the currents. 5. Find the time domain expressions for V and all the currents. ir + 5 cos(2001) (1) 100 uF 0000 1 H w 100 Ω
