(5) A QPSK modulation scheme transmits the carrier sin(2nfct + 0) where each symbol, i.e., an information bit pair, is m

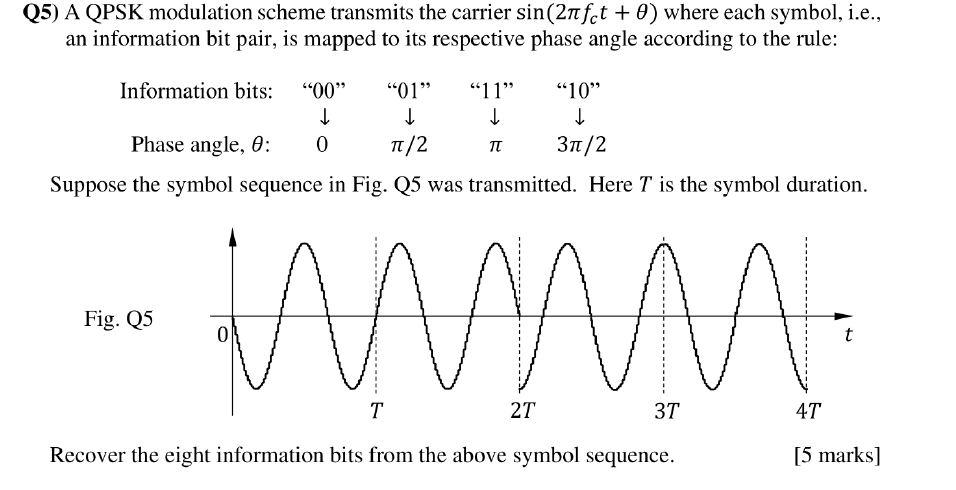

(5) A QPSK modulation scheme transmits the carrier sin(2nfct + 0) where each symbol, i.e., an information bit pair, is mapped to its respective phase angle according to the rule: Information bits: "00" “01” "11" "10" Phase angle, 8: 0 TI/2 TT Зп/2 Suppose the symbol sequence in Fig. Q5 was transmitted. Here T is the symbol duration. Fig. 25 AMMA . 0 t T 2T 3T 4T Recover the eight information bits from the above symbol sequence. [5 marks]
