Question 1 (a) Figure 1 shows a npn bipolar transistor circuit. Given the transistor parameters of VRE(on) = 0.7V and B

[answerhappygod]

Question 1 A Figure 1 Shows A Npn Bipolar Transistor Circuit Given The Transistor Parameters Of Vre On 0 7v And B 1 (87.64 KiB) Viewed 40 times

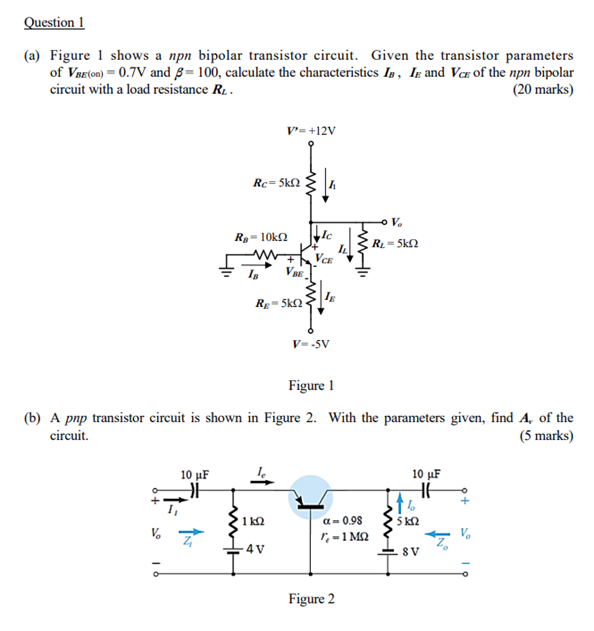

Question 1 (a) Figure 1 shows a npn bipolar transistor circuit. Given the transistor parameters of VRE(on) = 0.7V and B = 100, calculate the characteristics Is, Ig and Va of the npn bipolar circuit with a load resistance R. (20 marks) V=+12V Rc=522 V. W R-5k 2 R, - 10kΩ 410 ww VE R-52 V-5V Figure 1 (b) A pnp transistor circuit is shown in Figure 2. With the parameters given, find A, of the circuit. (5 marks) 10 uF HH 10 uF HE wa 1k2 5ΚΩ * A -0.98 1.- 1 M 2 4V 8V Figure 2
