Question 1 (a) Figure 1 shows a npn bipolar transistor circuit. Given the transistor parameters of VbE(on) = 0.7V and 3

[answerhappygod]

Question 1 A Figure 1 Shows A Npn Bipolar Transistor Circuit Given The Transistor Parameters Of Vbe On 0 7v And 3 1 (37.92 KiB) Viewed 35 times

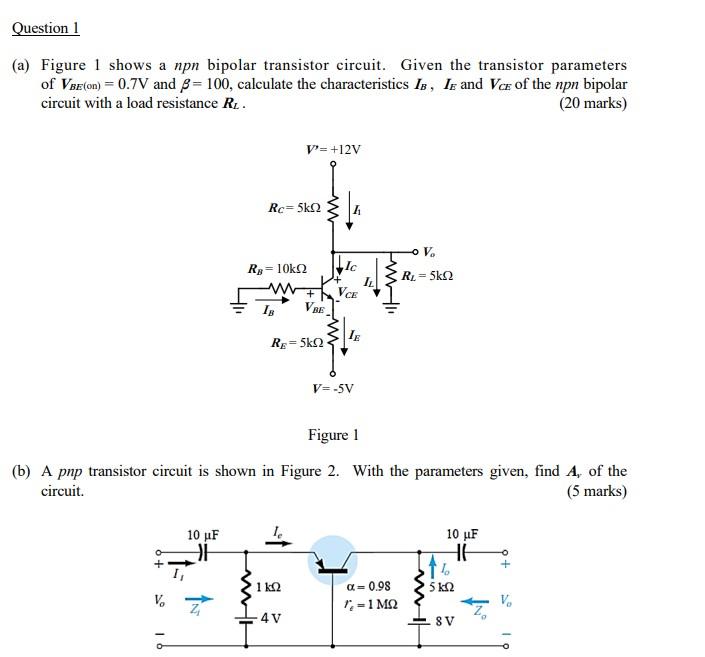

Question 1 (a) Figure 1 shows a npn bipolar transistor circuit. Given the transistor parameters of VbE(on) = 0.7V and 3 = 100, calculate the characteristics Is, lę and Vce of the npn bipolar circuit with a load resistance R.. (20 marks) V'= +12V Rc=5ko tie o V. RL=5k2 w IL Rg= 10k22 + + VCE 13 VBE IE RE= 5k2 = V=-5V Figure 1 (b) A pnp transistor circuit is shown in Figure 2. With the parameters given, find A, of the circuit (5 marks) 10 uF HE ተና 10 LF HE 14 5k2 w 1k2 a=0.98 1.- 1 MO2 4V SV
