Question 1 (20 + 5+ 5 + 5 + 5 = 40 marks) A 415 V, 50 Hz, delta-connected three-phase source supplying a star-connected

Post by answerhappygod »

Question 1 20 5 5 5 5 40 Marks A 415 V 50 Hz Delta Connected Three Phase Source Supplying A Star Connected 1
Question 1 20 5 5 5 5 40 Marks A 415 V 50 Hz Delta Connected Three Phase Source Supplying A Star Connected 1 (16.41 KiB) Viewed 25 times

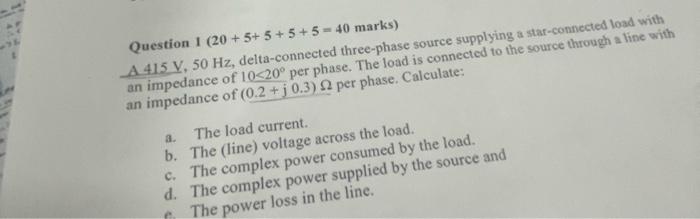

Question 1 (20 + 5+ 5 + 5 + 5 = 40 marks) A 415 V, 50 Hz, delta-connected three-phase source supplying a star-connected load with an impedance of 10<20° per phase. The load is connected to the source through a line with an impedance of (0.2 + j 0.3) 92 per phase. Calculate: The load current b. The (line) voltage across the load. c. The complex power consumed by the load. d. The complex power supplied by the source and The power loss in the line. a.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
