(b) Referring to the Class B amplifier circuit shown in Figure Q4 with the transistors having Va= Vour, Veron) - 0.7V, B

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(b) Referring to the Class B amplifier circuit shown in Figure Q4 with the transistors having Va= Vour, Veron) - 0.7V, B

Post by answerhappygod »

B Referring To The Class B Amplifier Circuit Shown In Figure Q4 With The Transistors Having Va Vour Veron 0 7v B 1
B Referring To The Class B Amplifier Circuit Shown In Figure Q4 With The Transistors Having Va Vour Veron 0 7v B 1 (50.44 KiB) Viewed 37 times

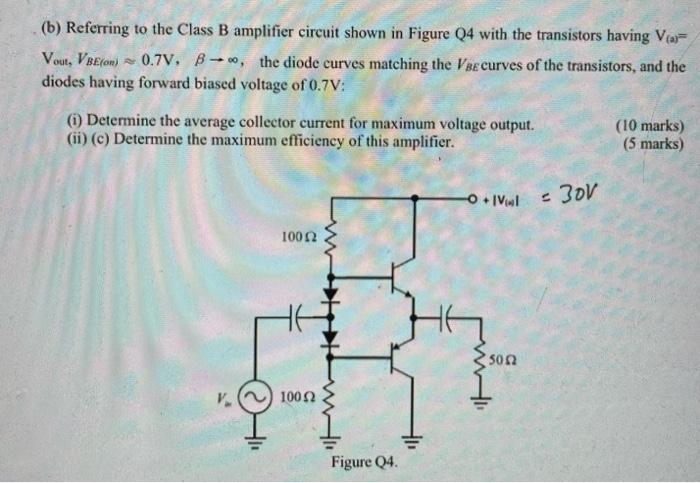

(b) Referring to the Class B amplifier circuit shown in Figure Q4 with the transistors having Va= Vour, Veron) - 0.7V, B-, the diode curves matching the Vsecurves of the transistors, and the diodes having forward biased voltage of 0.7V: (1) Determine the average collector current for maximum voltage output. (ii) (c) Determine the maximum efficiency of this amplifier. (10 marks) (5 marks) - VI - Bor 10002 HE 5022 100Ω Figure Q4.
