= 3.) Use the bounce diagram on the following page and the transmission line circuit below to find ... (a) the voltage a

[answerhappygod]

3 Use The Bounce Diagram On The Following Page And The Transmission Line Circuit Below To Find A The Voltage A 1 (61.73 KiB) Viewed 40 times

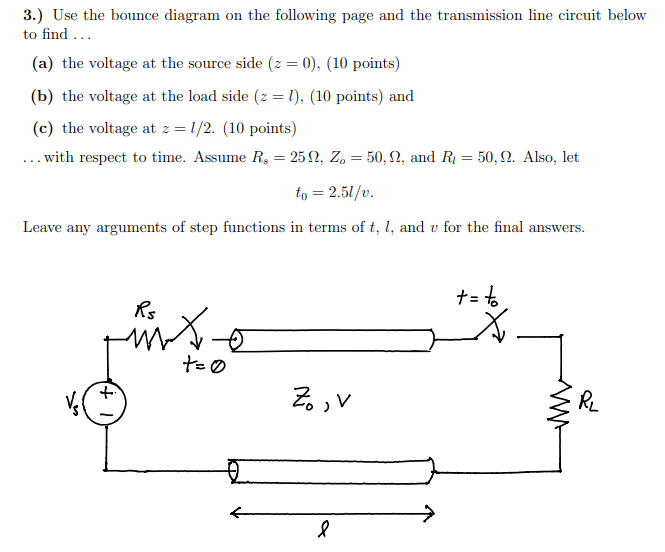

= 3.) Use the bounce diagram on the following page and the transmission line circuit below to find ... (a) the voltage at the source side (z = 0), (10 points) (b) the voltage at the load side (z = 1), (10 points) and (c) the voltage at 2 = 1/2. (10 points) ... with respect to time. Assume R, = 252, Z. = 50, 2, and R = 50,2. Also, let = to = 2.5l/v. Leave any arguments of step functions in terms of t, l, and v for the final answers. tuto Rs t=0 + Zoov RL w l

2 + + +
