A baseband bipolar PAM system is based on the triangular pulse shown in Fig. 24. The symbol duration (i.e., from the sta

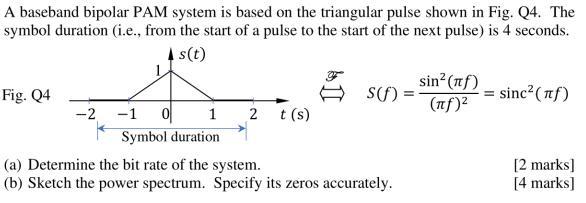

A baseband bipolar PAM system is based on the triangular pulse shown in Fig. 24. The symbol duration (i.e., from the start of a pulse to the start of the next pulse) is 4 seconds. s(t) sin?(rf) Fig. 24 S sinc-(if) (rf) -2 -1 0 1 2 t(s) Symbol duration (a) Determine the bit rate of the system. [2 marks] (b) Sketch the power spectrum. Specify its zeros accurately. [4 marks)
