Answer all as they all go together, please.

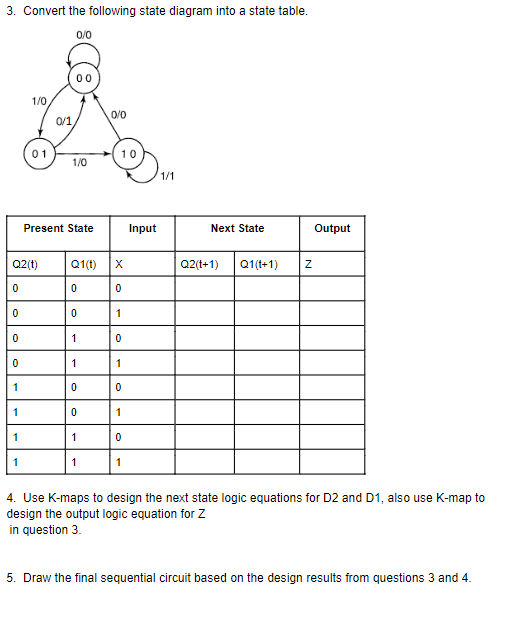

3. Convert the following state diagram into a state table. 0/0 00 1/0 0/1 0/0 01 10 1/0 1/1 Present State Input Next State Output 02(t) Q1(t) х Q2(t+1) Q1(t+1) Z 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 4. Use K-maps to design the next state logic equations for D2 and D1, also use K-map to design the output logic equation for Z in question 3 5. Draw the final sequential circuit based on the design results from questions 3 and 4.
