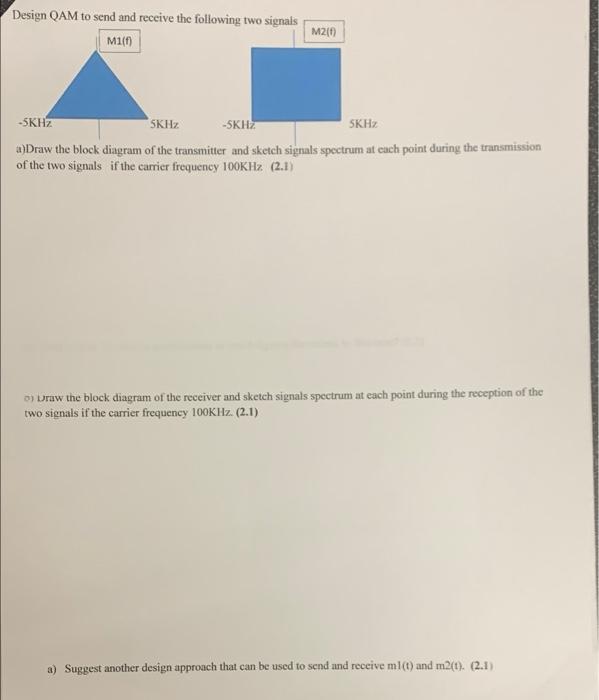

Design QAM to send and receive the following two signals M1(f) M210 -5KHZ SKHz -SKHZ SKHz a)Draw the block diagram of the transmitter and sketch signals spectrum at each point during the transmission of the two signals if the carrier frequency 100KHz (2.1) 1 uruw the block diagram of the receiver and sketch signals spectrum at each point during the reception of the two signals if the carrier frequency 100KHZ. (2.1) a) Suggest another design approach that can be used to send and receive ml(t) and m2(1), (2.1)
e) What will be the design specification to avoid signals distortions in this case? (2.2)
