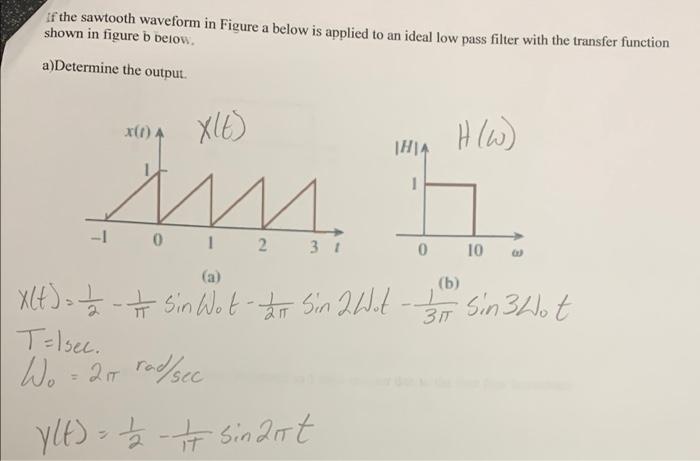

if the sawtooth waveform in Figure a below is applied to an ideal low pass filter with the transfer function shown in figure b below. a)Determine the output. x(0) AXLES ) x) How THA 1 am M. . -- 0 1 2 31 0 10 (a) (b) X(t) = 1/2 * sin Wot - Last Sin 2 Wot - 317 Sin32ot T=lsec. Wo=215 rad/sec y(t) = 3 + sinant

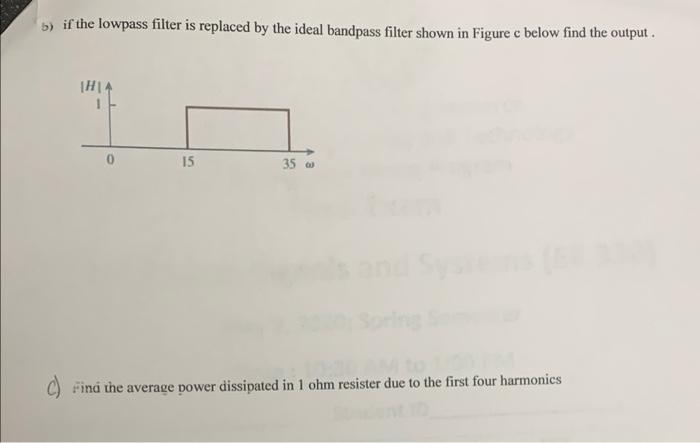

b) if the lowpass filter is replaced by the ideal bandpass filter shown in Figure e below find the output. IHA 15 35. c) Find the average power dissipated in 1 ohm resister due to the first four harmonics
