Q1) Consider a system that FM modulates a carrier of frequency fc = 100 MHz carrier with a message signal of 15 kHz. The

Post by answerhappygod »

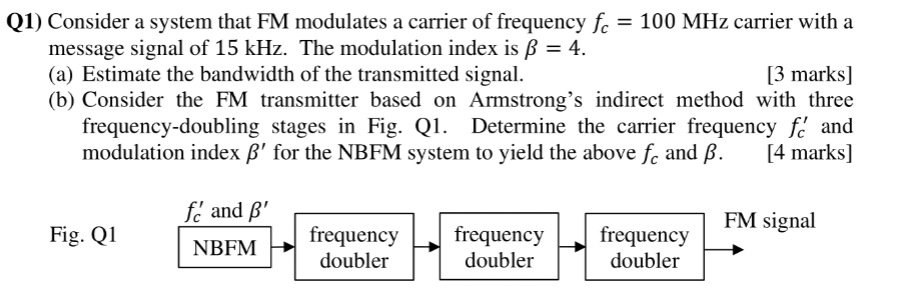

Q1 Consider A System That Fm Modulates A Carrier Of Frequency Fc 100 Mhz Carrier With A Message Signal Of 15 Khz The 1
Q1 Consider A System That Fm Modulates A Carrier Of Frequency Fc 100 Mhz Carrier With A Message Signal Of 15 Khz The 1 (84.16 KiB) Viewed 53 times
Q1) Consider a system that FM modulates a carrier of frequency fc = 100 MHz carrier with a message signal of 15 kHz. The modulation index is ß = 4. (a) Estimate the bandwidth of the transmitted signal. [3 marks] (b) Consider the FM transmitter based on Armstrong's indirect method with three frequency-doubling stages in Fig. Ql. Determine the carrier frequency fé and modulation index B' for the NBFM system to yield the above fc and B. [4 marks] f' and B' NBFM FM signal Fig. 21 frequency doubler frequency doubler frequency doubler
