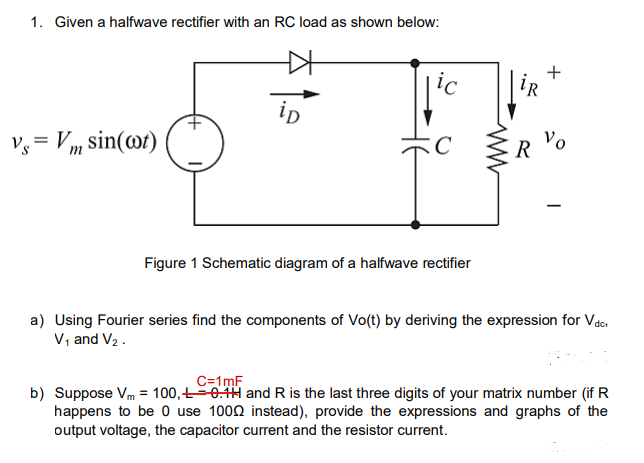

1. Given a halfwave rectifier with an RC load as shown below: 辛 + ic IR ip vs = Vm sin(6t) с RY Figure 1 Schematic diagr

[answerhappygod]

1 (60.32 KiB) Viewed 29 times

1. Given a halfwave rectifier with an RC load as shown below: 辛 + ic IR ip vs = Vm sin(6t) с RY Figure 1 Schematic diagram of a halfwave rectifier a) Using Fourier series find the components of Vo(t) by deriving the expression for Vdc V4 and V2 C=1mF b) Suppose Vm = 100, +0.14 and R is the last three digits of your matrix number (if R happens to be o use 1000 instead), provide the expressions and graphs of the output voltage, the capacitor current and the resistor current.
