1. Given the voltage gain G(s) of the following systems. Make the Bode plot using Matlab or Octave . Approximate the app

[answerhappygod]

1 Given The Voltage Gain G S Of The Following Systems Make The Bode Plot Using Matlab Or Octave Approximate The App 1 (32.44 KiB) Viewed 34 times

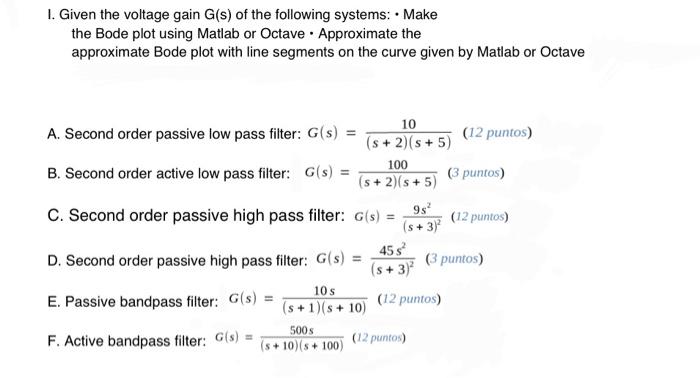

1. Given the voltage gain G(s) of the following systems. Make the Bode plot using Matlab or Octave . Approximate the approximate Bode plot with line segments on the curve given by Matlab or Octave 10 A. Second order passive low pass filter: G(s) = (12 puntos) (s + 2)(8 + 5) B. Second order active low pass filter: G(s) = 100 (s + 2)(s + 5) (3 puntos) C. Second order passive high pass filter: G(s) 9s (12 puntos) (s + 3) 455 D. Second order passive high pass filter: G(s) = (3 puntos) (5+3) 10 s E. Passive bandpass filter: G(s) = (12 puntos) (s + 1)(8 + 10) F. Active bandpass filter: G(s) = (s + 10)(8 + 100) (12 puntos) 500S
