5. Given the root locus shown in the figure s-plane j1 -11 Faculty of Engineering (a) Find the value of gain that will m

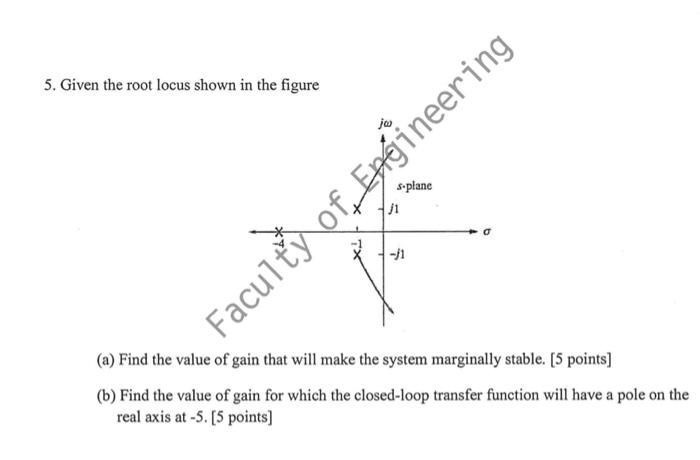

5. Given the root locus shown in the figure s-plane j1 -11 Faculty of Engineering (a) Find the value of gain that will make the system marginally stable. (5 points) (b) Find the value of gain for which the closed-loop transfer function will have a pole on the real axis at -5. (5 points)
