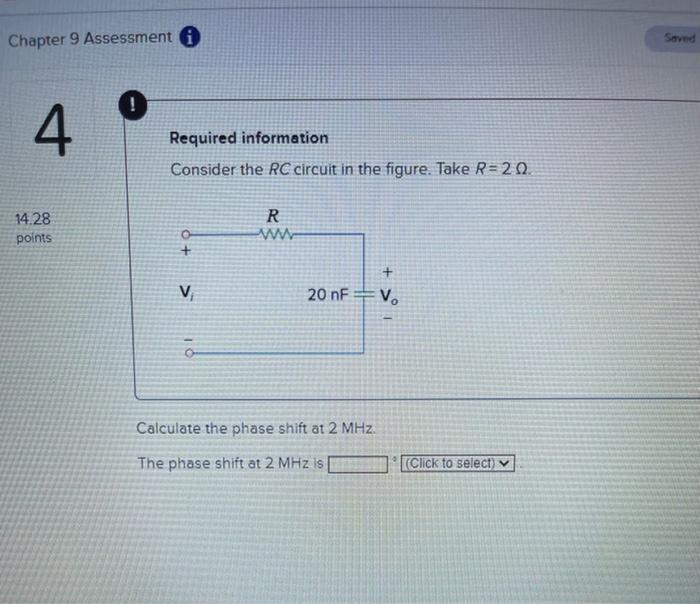

Soved Chapter 9 Assessment i 4 Required information Consider the RC circuit in the figure. Take R=22 R 14.28 points a V + V. 20 nF Calculate the phase shift at 2 MHz. The phase shift at 2 MHz is (Click to select)

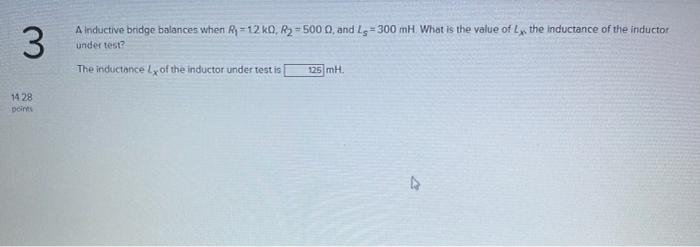

3 A inductive bridge balances when Ry = 12 KO, R2 =5000, and 1s = 300 mH. What is the value of Ly the inductance of the inductor under testa The inductance Ly of the inductor under testis 125 mH 1428 points
