2. Given the block diagram in Figure 1, perform the following tasks 1. Determine the BIBO stability with the Routh Array

[answerhappygod]

2 Given The Block Diagram In Figure 1 Perform The Following Tasks 1 Determine The Bibo Stability With The Routh Array 1 (42.77 KiB) Viewed 54 times

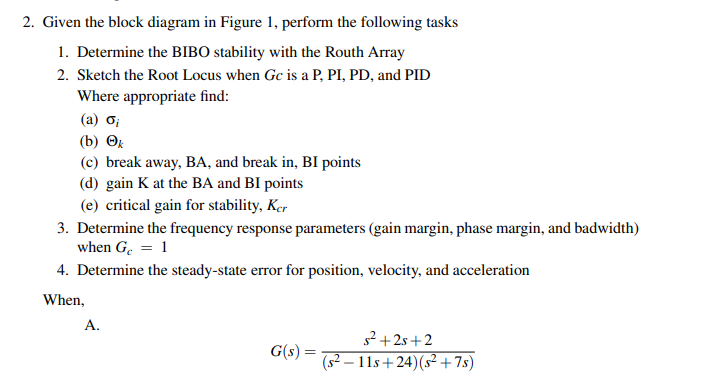

2. Given the block diagram in Figure 1, perform the following tasks 1. Determine the BIBO stability with the Routh Array 2. Sketch the Root Locus when Gc is a P, PI, PD, and PID Where appropriate find: (a) o (b) OK (c) break away, BA, and break in, BI points (d) gain K at the BA and BI points (e) critical gain for stability, Ker 3. Determine the frequency response parameters (gain margin, phase margin, and badwidth) when Ge = 1 4. Determine the steady-state error for position, velocity, and acceleration When, A. 52 +2s +2 G(s) = (52 – 11s +24)(x2 +7s)

R(S) Y($) Ge(s) G(s) Figure 1: Generic block diagram.
