4. For the Wheatstone Bridge circuit below: [8 Points] R 1.0 ΚΩ R2 2.2 ΚΩ Rt. B Am 4.7 kΩ RE 2.212 R 1.5 2 i. Determine

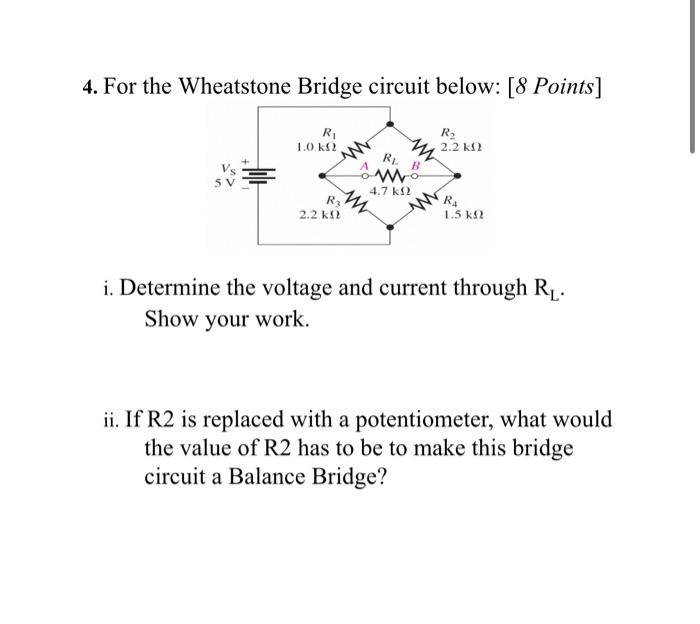

4. For the Wheatstone Bridge circuit below: [8 Points] R 1.0 ΚΩ R2 2.2 ΚΩ Rt. B Am 4.7 kΩ RE 2.212 R 1.5 2 i. Determine the voltage and current through RL. Show your work. ii. If R2 is replaced with a potentiometer, what would the value of R2 has to be to make this bridge circuit a Balance Bridge?
