8) Plot the Transfer Curve for the follow Circuit: VGS(OFF) = -8V and loss = 16mA (8 points) y cc = 30v ww R3 21 3 2N545

Post by answerhappygod »

8 Plot The Transfer Curve For The Follow Circuit Vgs Off 8v And Loss 16ma 8 Points Y Cc 30v Ww R3 21 3 2n545 1
8 Plot The Transfer Curve For The Follow Circuit Vgs Off 8v And Loss 16ma 8 Points Y Cc 30v Ww R3 21 3 2n545 1 (14.61 KiB) Viewed 24 times
My questions is for #10

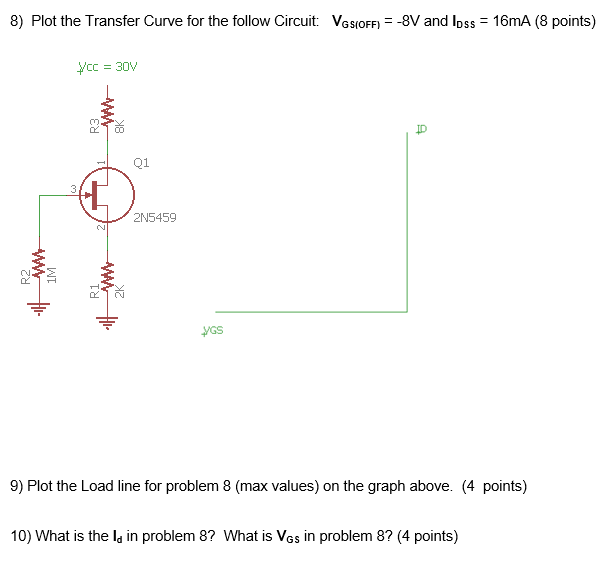

8) Plot the Transfer Curve for the follow Circuit: VGS(OFF) = -8V and loss = 16mA (8 points) y cc = 30v ww R3 21 3 2N5459 R2 1M 1 w R1 YGS 9) Plot the Load line for problem 8 (max values) on the graph above. (4 points) 10) What is the le in problem 8? What is Vos in problem 8? (4 points)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
