The current gain of a common emitter transistor circuit shown in figure is 150. (VBE = 0.7 V) a. (10 points) Write the a

Post by answerhappygod »

The Current Gain Of A Common Emitter Transistor Circuit Shown In Figure Is 150 Vbe 0 7 V A 10 Points Write The A 1
The Current Gain Of A Common Emitter Transistor Circuit Shown In Figure Is 150 Vbe 0 7 V A 10 Points Write The A 1 (202.68 KiB) Viewed 31 times

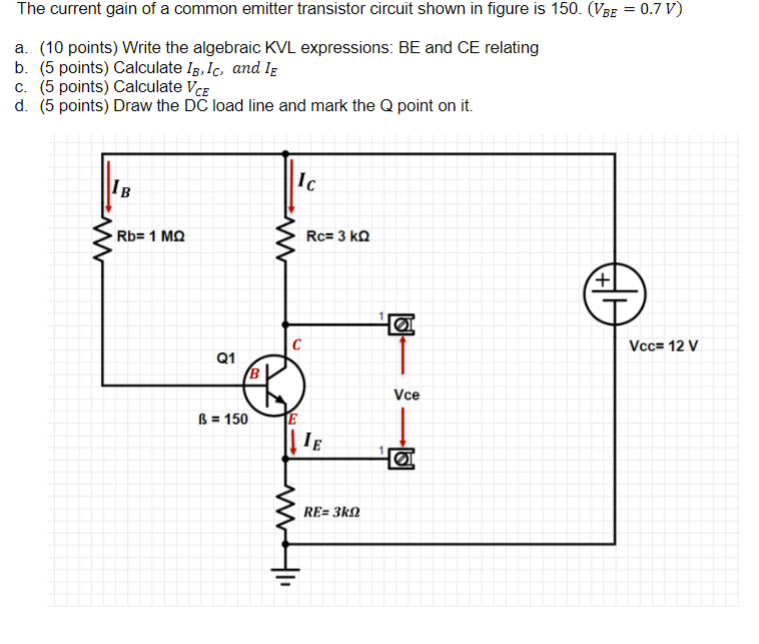

The current gain of a common emitter transistor circuit shown in figure is 150. (VBE = 0.7 V) a. (10 points) Write the algebraic KVL expressions: BE and CE relating b. (5 points) Calculate 13, Ic, and Ig c. (5 points) Calculate VCE d. (5 points) Draw the DC load line and mark the Q point on it. IB IC w Rb= 1 MO Rc= 3 kg с Vcc= 12 V Q1 Vce B = 150 TE RE= 322
