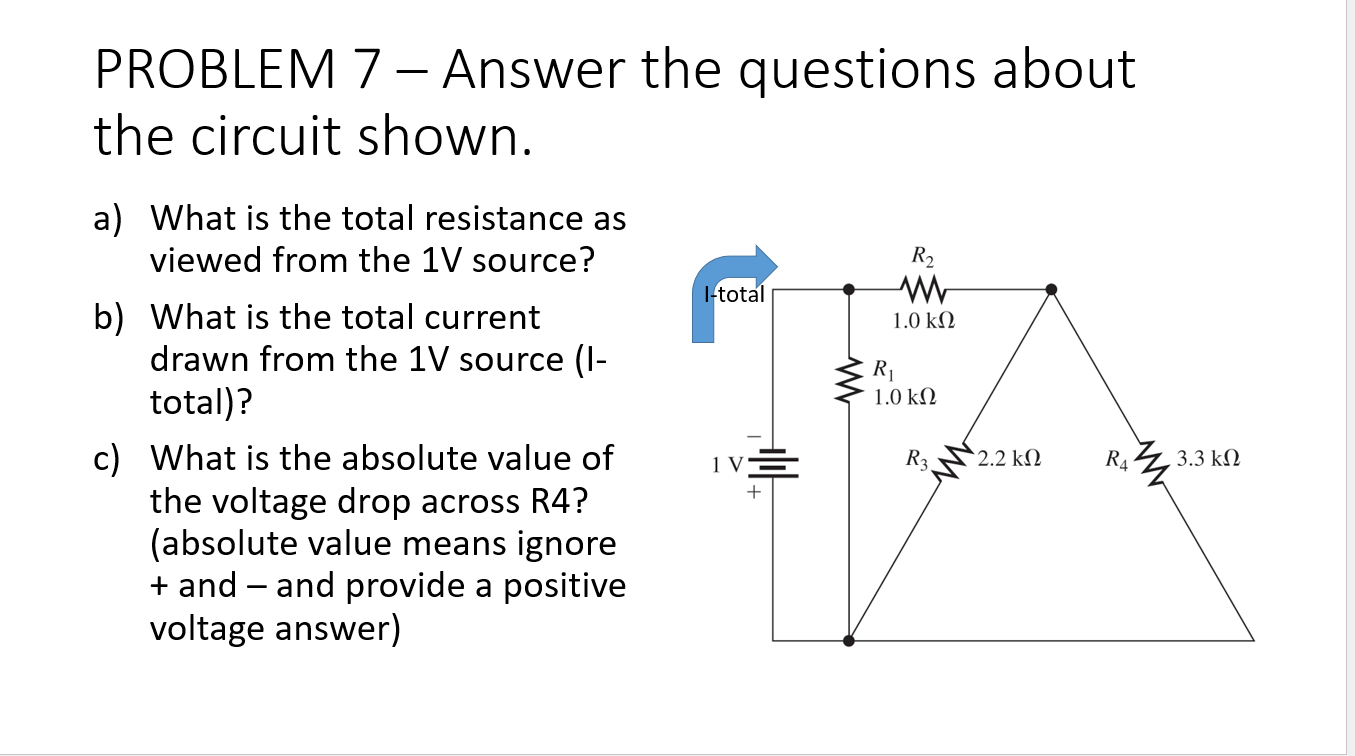

PROBLEM 7 – Answer the questions about the circuit shown. I-total R2 w 1.0 k 12 w RI 1.0 k 12 a) What is the total resistance as viewed from the 1 V source? b) What is the total current drawn from the 1V source (1- total)? c) What is the absolute value of the voltage drop across R4? (absolute value means ignore + and - and provide a positive voltage answer) iv = R3 2.2 k12 R4 3.3 k 12 +
