answer as soon as you can answer as soon as you can correctly

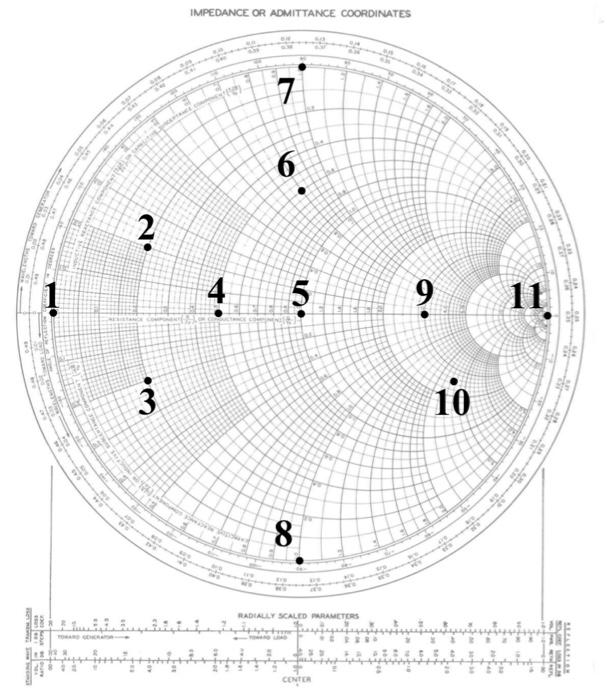

The eleven labeled locations on the Smith Chart (SC) on the next page represent various LOAD impedances on a lossless TL having characteristic impedance Z0 = 50 [Ω] For each part, list ALL of the numbered points on the SC that correspond to each of the following TL properties. You may want to use your compass and ruler to check the properties.
The eleven labeled locations on the Smith Chart (SC) on the next page represent various LOAD impedances on a lossless TL having characteristic impedance Z0 = 50 [Ω] For each part, list ALL of the numbered points on the SC that correspond to each of the following TL properties. You may want to use your compass and ruler to check the properties.

Answer As Soon As You Can Answer As Soon As You Can Correctly The Eleven Labeled Locations On The Smith Chart Sc On Th 1 (69.06 KiB) Viewed 39 times

Answer As Soon As You Can Answer As Soon As You Can Correctly The Eleven Labeled Locations On The Smith Chart Sc On Th 2 (22.79 KiB) Viewed 39 times

Answer As Soon As You Can Answer As Soon As You Can Correctly The Eleven Labeled Locations On The Smith Chart Sc On Th 3 (13.36 KiB) Viewed 39 times

Answer As Soon As You Can Answer As Soon As You Can Correctly The Eleven Labeled Locations On The Smith Chart Sc On Th 4 (101.68 KiB) Viewed 39 times

Answer As Soon As You Can Answer As Soon As You Can Correctly The Eleven Labeled Locations On The Smith Chart Sc On Th 5 (101.68 KiB) Viewed 39 times

IMPEDANCE OR ADMITTANCE COORDINATES 7 6 2 ! 4 5 9 11 3 10 8 RADIALLY SCALED AMETORS CENTER

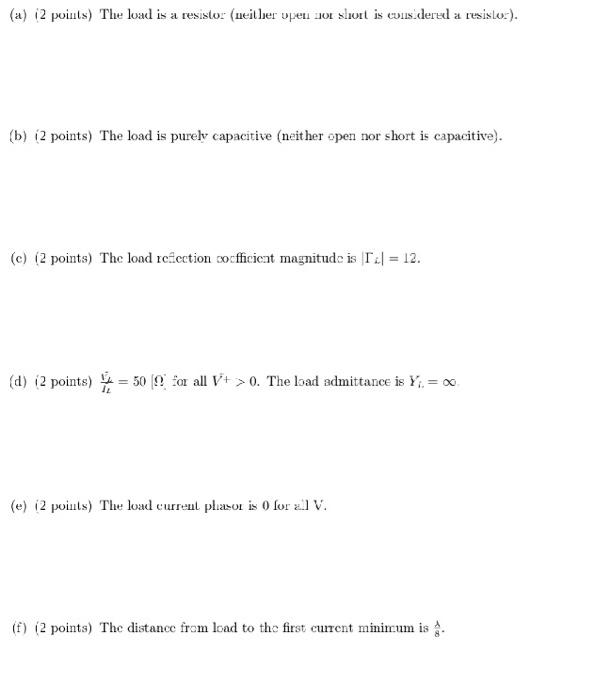

(a) 12 points) The loal is a resistor (neiller opeu sur short is considered a resistor). (b) (2 points) The load is purely capacitive (neither open nor short is capacitive). (c) (2 points) Thc load rc cction cocfficicat magnitudo is Til = 12. (d) 12 points) = 50 lg for all V+ >0. The load admittance is Y = 20 (e) 12 points) The load current phasor is o for a v. (f) (2 points) The distance from load to the first current minircum is.

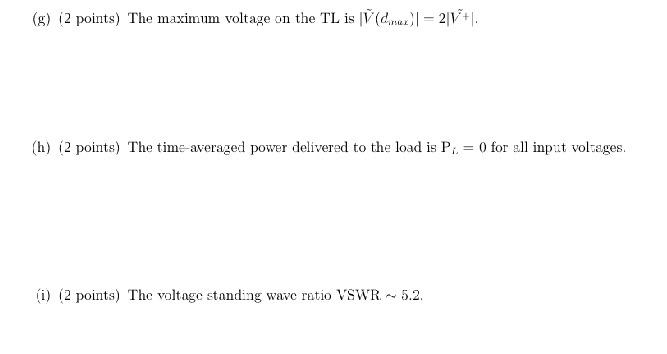

(g) 12 points) The maximum voltage on the TL is VC) = 2/V+). (h) 2 points) The time-averaged power delivered to the load is P = 0 for all input voltages. (i) (2 points) The voltage standing wave ratio VSWR - 5.2. A

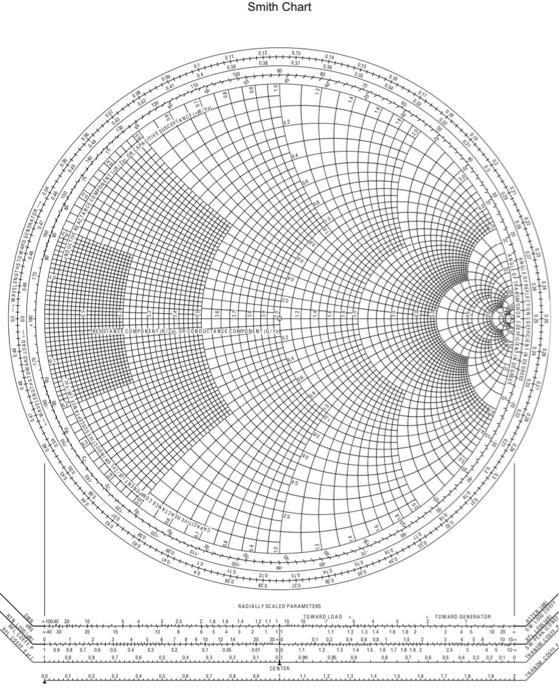

Smith Chart BI CERTAS போபாபால் TIFT TERA 1 RADIALLY SCALED PARAMETERS 14.1 TOWARD LOAD TO SITO witin 11 LISSELICE GS TE
