5. For the following circuit, find the Thevenin's Voltage (VTH) and Thevenin's Resistance (RTH). Draw the Thevenin's Equ
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
5. For the following circuit, find the Thevenin's Voltage (VTH) and Thevenin's Resistance (RTH). Draw the Thevenin's Equ

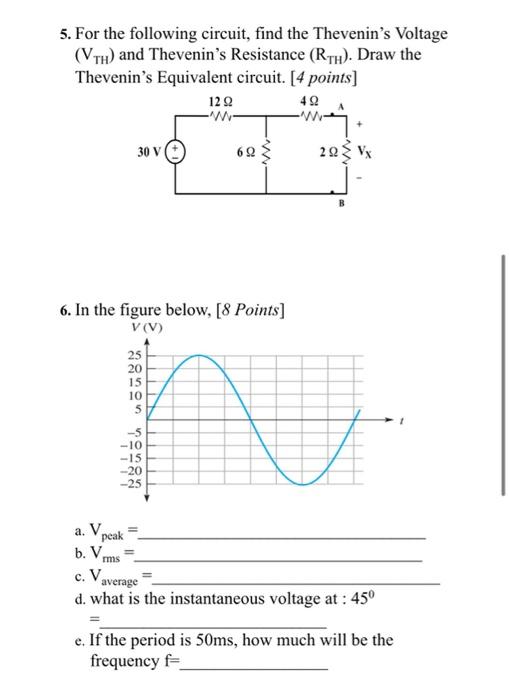

5. For the following circuit, find the Thevenin's Voltage (VTH) and Thevenin's Resistance (RTH). Draw the Thevenin's Equivalent circuit. [4 points) 129 49 -- 30 V 60 20 VX 6. In the figure below, (8 Points] V(V) 25 20 15 10 5 N -5 -10 -15 -20 -25 = peak mms a. V b. V. c. Vaverage d. what is the instantaneous voltage at : 450 e. If the period is 50ms, how much will be the frequency f-
