100 100 10V 100 333 3. How much will be the branch current readings in each meter for the circuit below? Show calculatio

Post by answerhappygod »

100 100 10v 100 333 3 How Much Will Be The Branch Current Readings In Each Meter For The Circuit Below Show Calculatio 1
100 100 10v 100 333 3 How Much Will Be The Branch Current Readings In Each Meter For The Circuit Below Show Calculatio 1 (28.36 KiB) Viewed 28 times

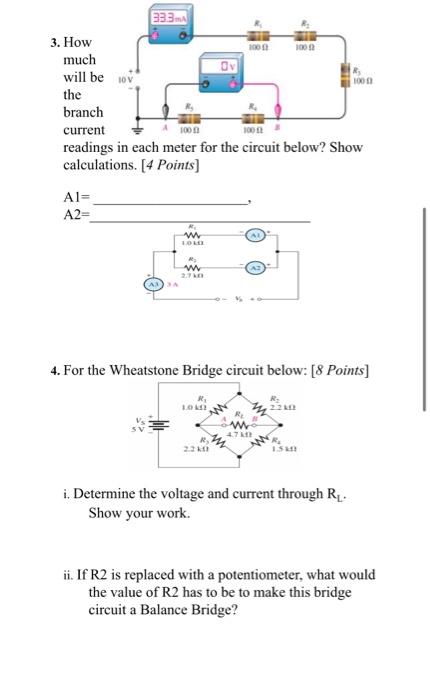

100 100 10V 100 333 3. How much will be the branch current readings in each meter for the circuit below? Show calculations. [4 Points] Al= A2= w HOLA w 4. For the Wheatstone Bridge circuit below: [8 Points] 4.7 R. 1.5 22 i. Determine the voltage and current through R. Show your work. ii. If R2 is replaced with a potentiometer, what would the value of R2 has to be to make this bridge circuit a Balance Bridge?
