Answer the following questions and show all your calculations in the given spaces. 1. Circuit Measurements: 16 Points a.

[answerhappygod]

Answer The Following Questions And Show All Your Calculations In The Given Spaces 1 Circuit Measurements 16 Points A 1 (31.12 KiB) Viewed 49 times

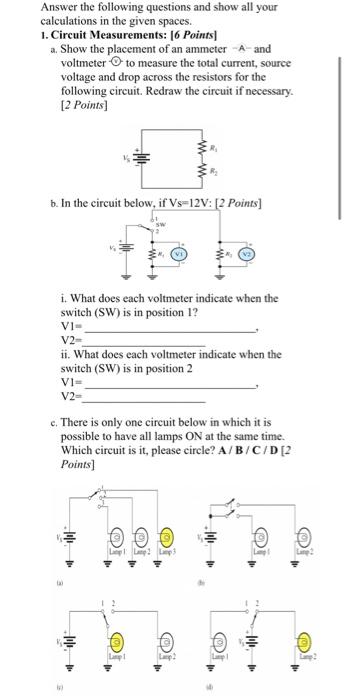

Answer the following questions and show all your calculations in the given spaces. 1. Circuit Measurements: 16 Points a. Show the placement of an ammeter A and voltmeter to measure the total current, source voltage and drop across the resistors for the following circuit. Redraw the circuit if necessary. [2 Points) www b. In the circuit below, if Ve=12V: [2Points] i. What does each voltmeter indicate when the switch (SW) is in position 1? VI- V2 ii. What does each voltmeter indicate when the switch (SW) is in position 2 VI V2- c. There is only one circuit below in which it is possible to have all lamps ON at the same time. Which circuit is it, please circle? A/B/C/D [2 Points) 1 @ @
