1. Given the voltage gain G(s) of the following systems. Make the Bode plot using Matlab or Octave = 10 A. Second order

[answerhappygod]

1 Given The Voltage Gain G S Of The Following Systems Make The Bode Plot Using Matlab Or Octave 10 A Second Order 1 (37.78 KiB) Viewed 35 times

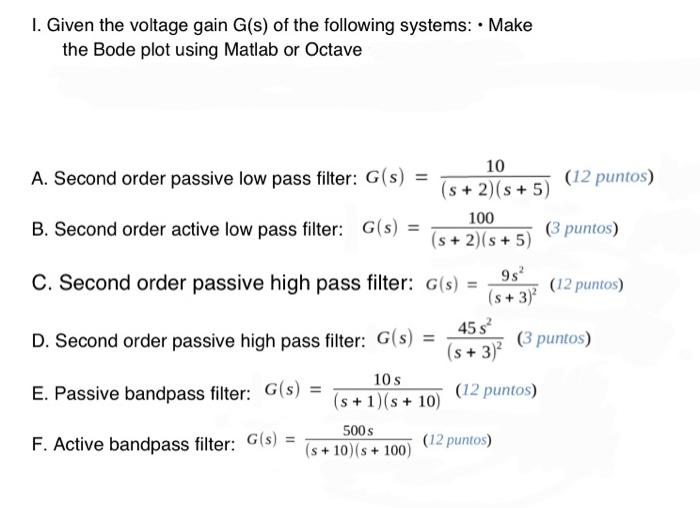

1. Given the voltage gain G(s) of the following systems. Make the Bode plot using Matlab or Octave = 10 A. Second order passive low pass filter: G(s) = (12 puntos) (s + 2)(s + 5) 100 B. Second order active low pass filter: G(s) (s + 2)(8 + 5) (3 puntos) C. Second order passive high pass filter: G(s) = 9s? (12 puntos) (s + 3) 45 D. Second order passive high pass filter: G(s) = (3 puntos) (s + 3) 10 s E. Passive bandpass filter: G(s) = (s + 1)(s + 10) (12 puntos) 500 s F. Active bandpass filter: G(s) (12 puntos) (s + 10) (s + 100) = =
