24. A 741 op amp is used as an inverting amplifier with feedback resistor Rf = 8,000 ohms and input resistor Ri = 2,000

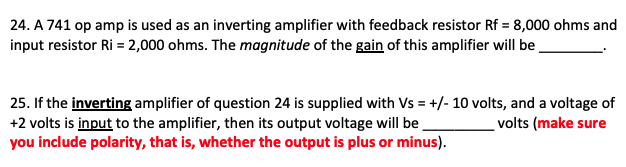

24. A 741 op amp is used as an inverting amplifier with feedback resistor Rf = 8,000 ohms and input resistor Ri = 2,000 ohms. The magnitude of the gain of this amplifier will be 25. If the inverting amplifier of question 24 is supplied with Vs = +/- 10 volts, and a voltage of +2 volts is input to the amplifier, then its output voltage will be volts (make sure you include polarity, that is, whether the output is plus or minus).
