For the ROM diagram please fill the truth table values using hexadecimal digits only. Output 3 is the most significative

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the ROM diagram please fill the truth table values using hexadecimal digits only. Output 3 is the most significative

Post by answerhappygod »

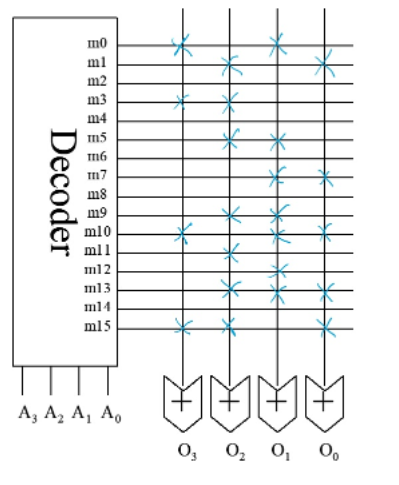

For the ROM diagram please fill the truth table values
using hexadecimal digits only. Output 3 is the most significative
bit. A3 is the most significative address line.
For The Rom Diagram Please Fill The Truth Table Values Using Hexadecimal Digits Only Output 3 Is The Most Significative 1
For The Rom Diagram Please Fill The Truth Table Values Using Hexadecimal Digits Only Output 3 Is The Most Significative 1 (71.18 KiB) Viewed 34 times
For The Rom Diagram Please Fill The Truth Table Values Using Hexadecimal Digits Only Output 3 Is The Most Significative 2
For The Rom Diagram Please Fill The Truth Table Values Using Hexadecimal Digits Only Output 3 Is The Most Significative 2 (6.1 KiB) Viewed 34 times
πι0 ml m2 m3 m4 m5 m6 m7 m8 Decoder m9 m10 mll m12 m13 m11 ml5 WHIHW A, A, A, A, 0, og 020 0.

Input A3A2A1A0 Output 03020100 (Hex) 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111
