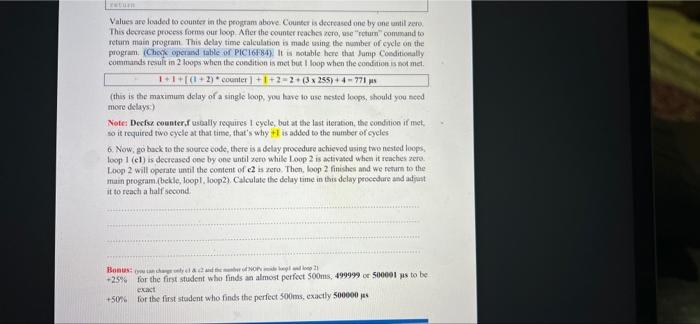

Values are loaded to counter in the program above. Counter is decreased one by one until This decrease process for our loop. After the counter reaches roro, se return command to retum main program. This delay time calculation is made using the number of eycle on the program, Check opend table of PIC16F84). It is notable here that Jump Conditionally commands result in 2 loops when the condition is met but I loop when the condition is not met 1+1+(1+2) counter+1+23(3 x 255) 4771 (this is the maximum delay of a single loop, you have to use nested loops, should you need more delays) Note: Decls counterfaseally requires I cycle, but at the last iteration, the condition is met so it required two cycle at that time, that's why is added to the number of cycles 6 Now, go back to the source code, there is a delay procedure achieved using two nested loops loop 1 (el) is decreased one by one until zero while Loop 2 is active when it reaches zero Loop 2 will operate until the content of 2 is zero. Then, loop 2 finishes and we return to the main program (bekle, loopl. loop2) Calculate the delay time in this delay procedure and adjust it to reach a half second Bonusowych -25% for the first student who finds an almost perfect 500m, 499999500001 yıs to be exact +50 for the first student who finds the perfect sms, exactly 500000

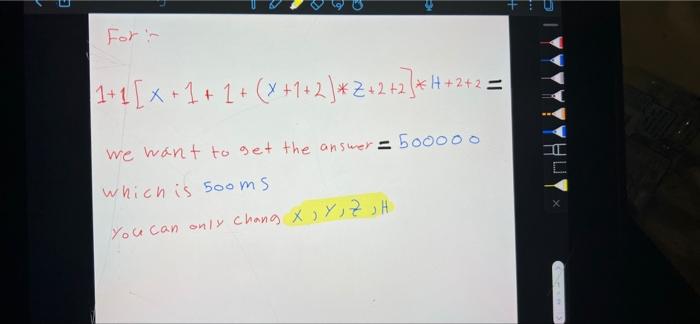

Fort 1+1 [X+1 + 2 + (x +1+2]*Z+2 +2]+\+2+2 = we want to get the answer = 500000 which is sooms You can only chang X , Y , Z , H
