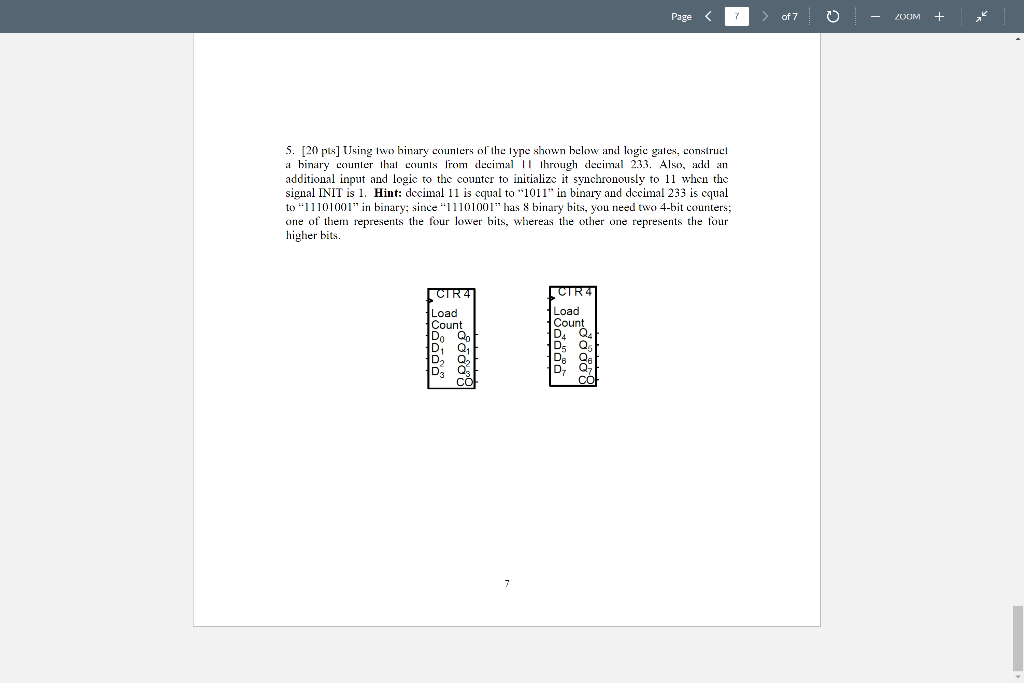

Page ZOOM 5. [20 pts] Using iwo binary counters of the lyre shown below and logic gales, construct a binary counter ihal
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Page ZOOM 5. [20 pts] Using iwo binary counters of the lyre shown below and logic gales, construct a binary counter ihal
Page ZOOM 5. [20 pts] Using iwo binary counters of the lyre shown below and logic gales, construct a binary counter ihal counts from decimal || through decimal 233. Also, add an additional input and logic to the counter to initialize it synchronously to 11 when the signal INIT is 1. Hint: decimal 11 is equal to "1011" in binary and decimal 233 is equal to "11101001" in binary; since "11101001" has 8 binary bits, you need two 4-bit counters, one of them represents the four lower bits, whereas the other one represents the four higher bits. CIR4 CIR4 ఈ Load Count Do Load Count oooo oooo 8.09.28
