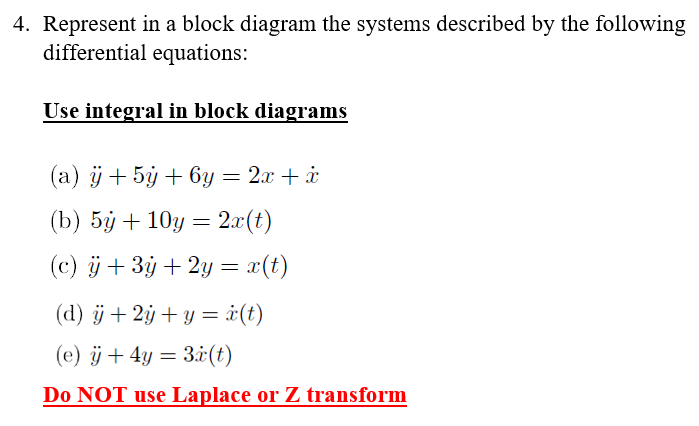

4. Represent in a block diagram the systems described by the following differential equations: Use integral in block dia
4. Represent in a block diagram the systems described by the following differential equations: Use integral in block diagrams = = (a) y + 5y + 6y = 2x + 3 (b) 5y + 10y = 2x(t) (c) y + 3y + 2y = x(t) y (d) y + 2y + y = i(t) (e) y + 4y = 3.i(t) Do NOT use Laplace or Z transform =
