5. Use the rules of potential difference (AV) to determine what the potential difference (voltage) is across the resisto

[answerhappygod]

5 Use The Rules Of Potential Difference Av To Determine What The Potential Difference Voltage Is Across The Resisto 1 (53.7 KiB) Viewed 32 times

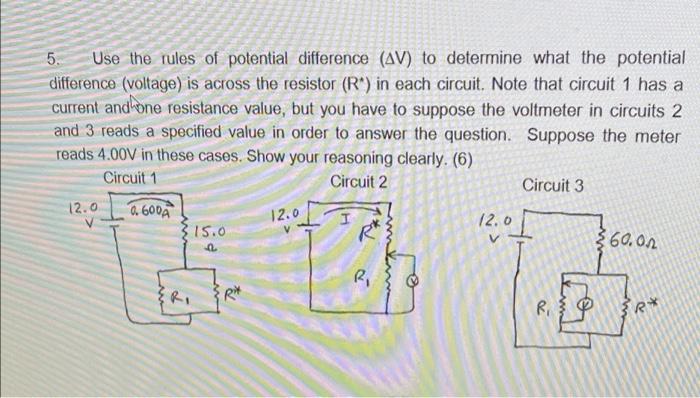

5. Use the rules of potential difference (AV) to determine what the potential difference (voltage) is across the resistor (R) in each circuit. Note that circuit 1 has a current and one resistance value, but you have to suppose the voltmeter in circuits 2 and 3 reads a specified value in order to answer the question. Suppose the meter reads 4.00V in these cases. Show your reasoning clearly. (6) Circuit 1 Circuit 2 Circuit 3 12.0 0.600 I 12.0 15.0 12.0 I Rk 360.00 RI R, 충 R P R*
