2.(20 pts.) For the circuit shown below: (a) Find the Thévenin equivalent with respect to the terminals A and B. (b) Fin

Post by answerhappygod »

2 20 Pts For The Circuit Shown Below A Find The Thevenin Equivalent With Respect To The Terminals A And B B Fin 1
2 20 Pts For The Circuit Shown Below A Find The Thevenin Equivalent With Respect To The Terminals A And B B Fin 1 (141.61 KiB) Viewed 52 times

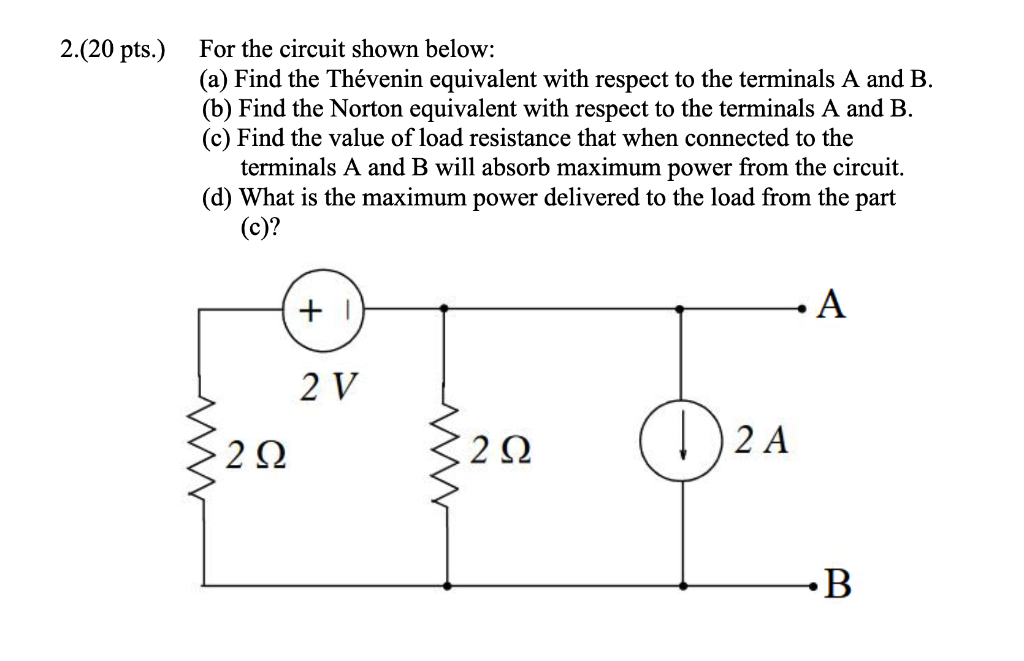

2.(20 pts.) For the circuit shown below: (a) Find the Thévenin equivalent with respect to the terminals A and B. (b) Find the Norton equivalent with respect to the terminals A and B. (c) Find the value of load resistance that when connected to the terminals A and B will absorb maximum power from the circuit. (d) What is the maximum power delivered to the load from the part (c)? + A 2 V w 20 222 DZA w В
