1.(20 pts) For the circuit shown below use the Node Voltage method to find: (a) Voltages V, and V4 and currents iz and i

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

1.(20 pts) For the circuit shown below use the Node Voltage method to find: (a) Voltages V, and V4 and currents iz and i

Post by answerhappygod »

1 20 Pts For The Circuit Shown Below Use The Node Voltage Method To Find A Voltages V And V4 And Currents Iz And I 1
1 20 Pts For The Circuit Shown Below Use The Node Voltage Method To Find A Voltages V And V4 And Currents Iz And I 1 (157.47 KiB) Viewed 55 times

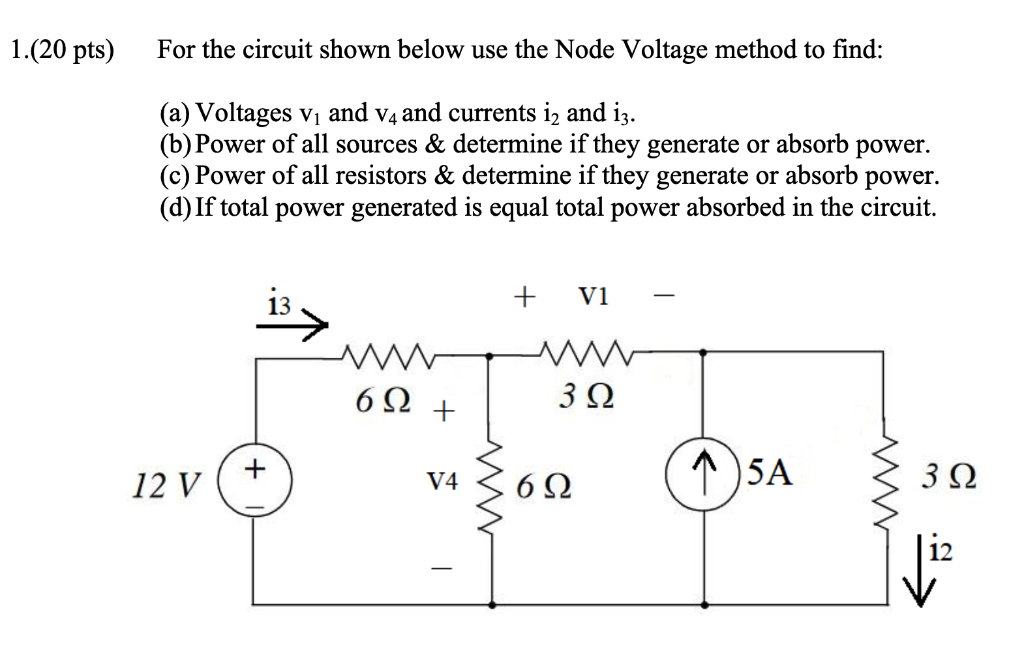

1.(20 pts) For the circuit shown below use the Node Voltage method to find: (a) Voltages V, and V4 and currents iz and iz. (b) Power of all sources & determine if they generate or absorb power. (c) Power of all resistors & determine if they generate or absorb power. (d) If total power generated is equal total power absorbed in the circuit. + 13 Vi w 612 w 322 + 12 V V4 622 15A 312 w M
