Problem 14 For transfer function given below, plot Bode plots of the Amplitude in dB and Phase in degrees H() 1052 (s+10

Post by answerhappygod »

Problem 14 For Transfer Function Given Below Plot Bode Plots Of The Amplitude In Db And Phase In Degrees H 1052 S 10 1
Problem 14 For Transfer Function Given Below Plot Bode Plots Of The Amplitude In Db And Phase In Degrees H 1052 S 10 1 (21.78 KiB) Viewed 38 times

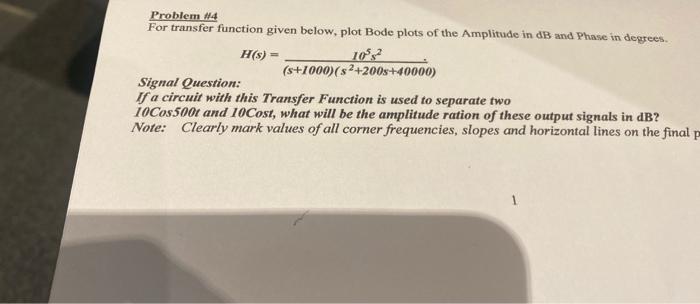

Problem 14 For transfer function given below, plot Bode plots of the Amplitude in dB and Phase in degrees H() 1052 (s+1000)(s 24200+40000) Signal Question: If a circuit with this Transfer Function is used to separate two 10Cos5001 and 10Cost, what will be the amplitude ration of these output signals in dB2 Note: Clearly mark values of all corner frequencies, slopes and horizontal lines on the final p
